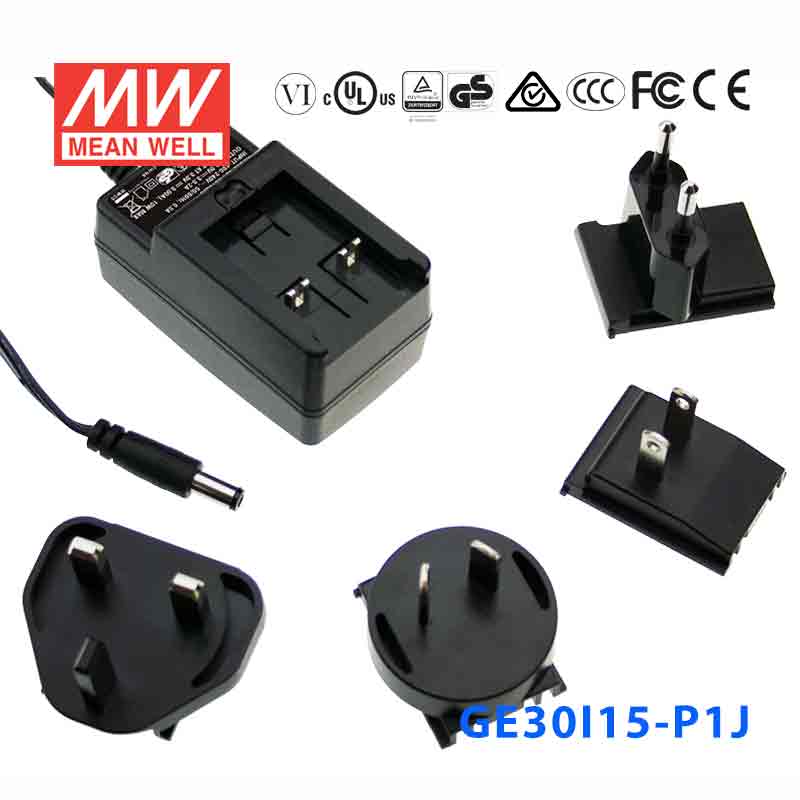

GE30I15-P1J

GE30I15-P1J

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Interchangeable AC plugs (plug kit sold seperately)
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
ErP step 2 compliant (Level V)
Meet EISA 2007 (Energy Independence and Security Act)
Class II power (without earth pin)
Fully enclosed plastic case
LED indicator for power on
Pass LPS
Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE
2 years warranty


General Specification

AC input voltage range 90~264VAC / 0.7A
AC inrush current (max.) Cold start, 40A at 100VAC; 80A at 230VAC
Setup, rise, hold up time 4000ms, 100ms, 30ms at 230VAC input
Overload protection Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P:4242VDC, 1 minute
Working temperature -10~+50C (refer to output derating curve)
Safety standards UL60950-1, CSA22.2, EN60950-1, GB4943, AS/NZS 60950.1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254
Length of output cable 150cm of AWM2468, 18AWG
Dimension (LxWxH) 81x 43x 40.5mm
Standard DC plug P1J: 2.1ID x5.5OD x11L tuning fork type
