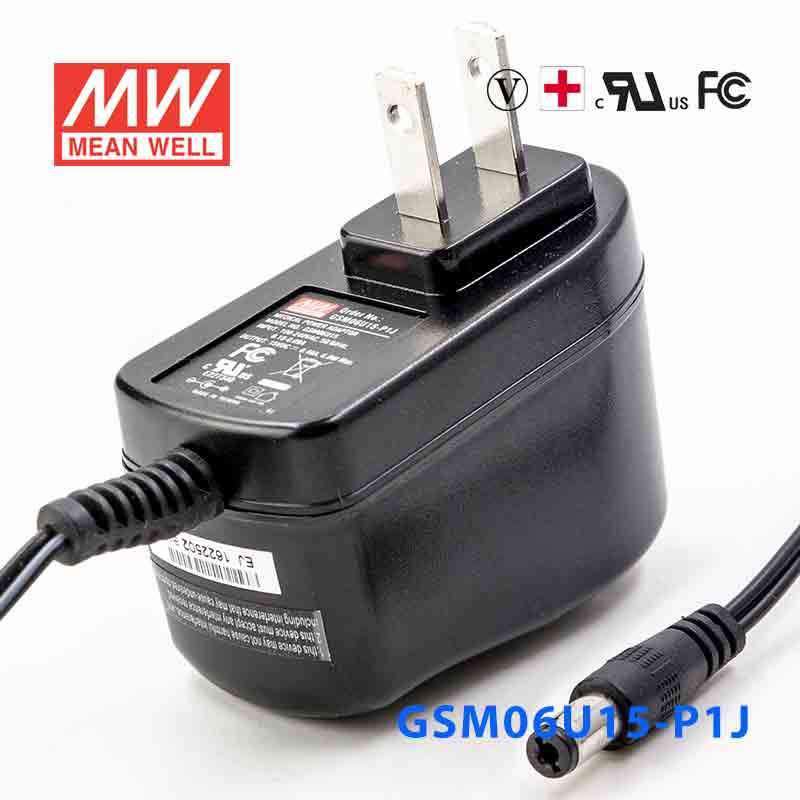

GSM06U15-P1J

GSM06U15-P1J

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
2 pole USA AC plug
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <50uA
No load power consumption < 0.3W
High efficiency up to 82%
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Energy efficiency Level V
Optional lock type DC plug
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Overload protection >105% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 5656VAC
Working temperature 0~+40°C (refer to output derating curve )
Safety standards ANSI/AAMI ES60601-1-11 approved
EMC standards FCC part 15 class B, FCC part 18
Length of output cable 122cm of UL2468, 22AWG for 5~9V ; 183cm of UL2468, 24AWG for 12~24V
Dimension (LxWxH) 32x 66x 42.5 mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type
