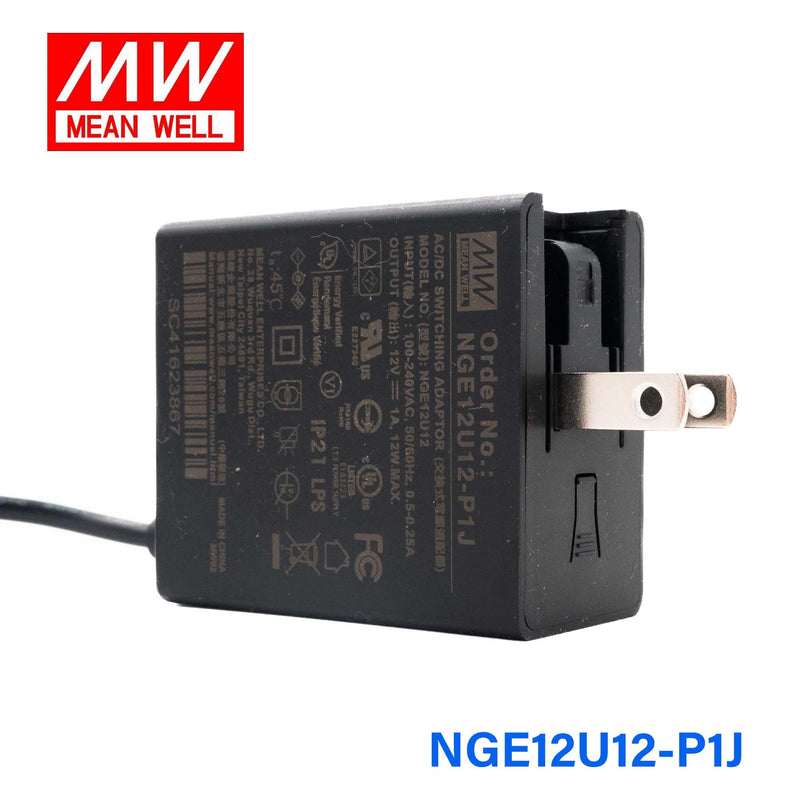

NGE12U12-P1J

Features:

• MEAN WELL Patent Application Number: 202330347779.4
• Interchangeable AC plugs
• Universal AC input / Full range
• Ultra slim(28mm)
• No load power consumption< 0.075W
• Energy efficiency level VI
• Class II power (no earth pin)
• Protections: Short circuit / Overload / Over voltage
• Pass LPS
• Extremely low leakage current <100uA
• -30℃ ~ + 70℃ wide range working temperature
• Various DC plug quick adapter accessories are available
• 3 years warranty

General Specification

AC input voltage range

80 ~ 264VAC 113 ~ 370VDC

AC inrush current (max.)

COLD START 40A / 115VAC 80A / 230VAC

Setup, rise, hold up time

1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load

Overload protection

Protection type: Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power

Over-voltage protection

Protection type: Clamp by zener diode | 115% ~ 140% rated output voltage

Withstand voltage

I/P-O/P:4000VAC

Working temperature

-30 ~ +70℃ (Refer to "Derating Curve")

Safety standards

CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved.

Dimension (LxWxH)

48x28x55mm
