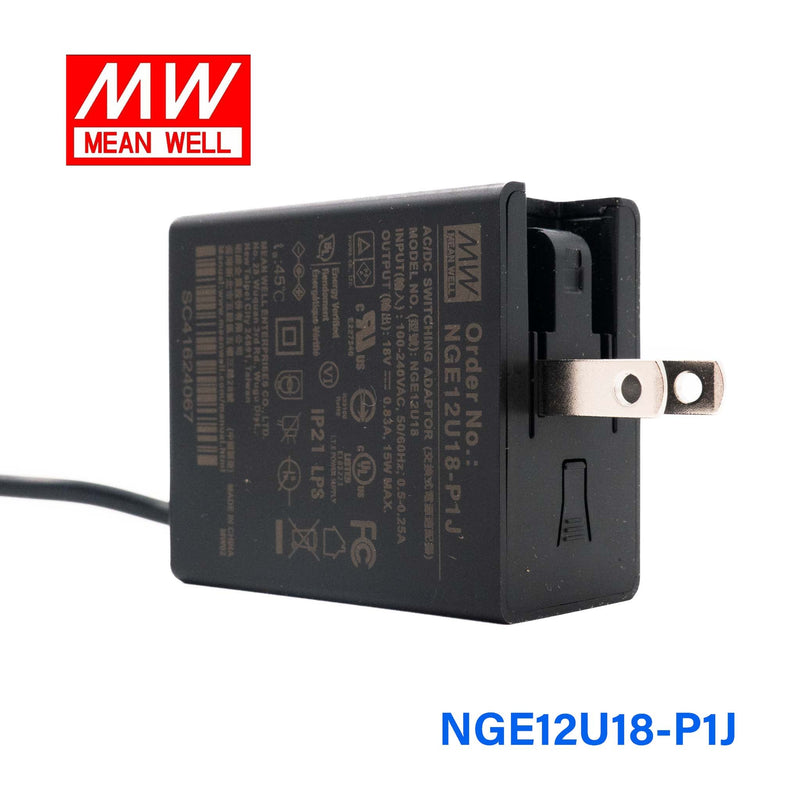

NGE12U18-P1J

NGE12U18-P1J

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

MEAN WELL Patent Application Number: 202330347779.4
Interchangeable AC plugs
Universal AC input / Full range
Ultra slim(28mm)
No load power consumption< 0.075W
Energy efficiency level VI
Class II power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Extremely low leakage current <100uA
-30℃ ~ + 70℃ wide range working temperature
Various DC plug quick adapter accessory available
3 years warranty

General Specification

AC input voltage range 80 ~ 264VAC 113 ~ 370VDC
AC inrush current (max.) COLD START 40A / 115VAC 80A / 230VAC
Setup, rise, hold up time 1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load
Overload protection Protection type : Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power
Over voltage protection Protection type : Clamp by zener diode | 115% ~ 140% rated output voltage
Withstand voltage I/P-O/P:4000VAC
Working temperature -30 ~ +70℃ (Refer to "Derating Curve")
Safety standards CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved.
Dimension (LxWxH) 48x28x55mm
