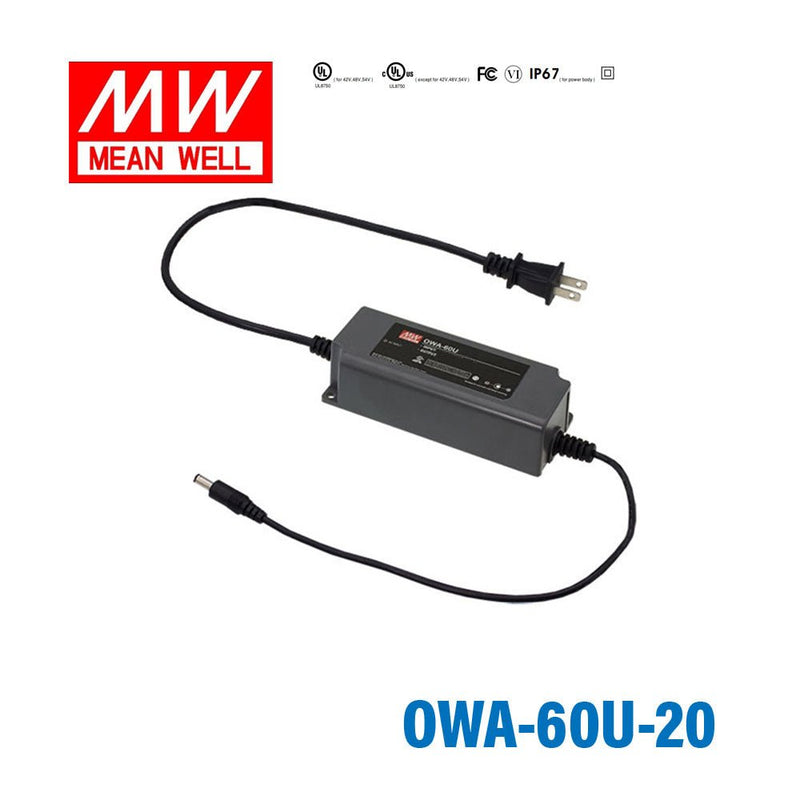

OWA-60U-20

OWA-60U-20

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Input range 180~264VAC
Class II power unit, no FG
Built-in active PFC function
High efficiency up to 94%
No load power consumption <0.15W
Energy efficiency Level VI
Comply with EU ErP and CoC Version 5
Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 (except for OWA-200E-48,54) for household appliance
Fanless design, cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Various DC plug quick adapter accessories are available
5 years warranty

General Specification

AC input voltage range 180~264VAC; 254~370VDC
AC inrush current COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC
Leakage current <0.25mA/240VAC
Over-voltage protection 116%~133% rated output voltage
Setup, rise, hold up time 500ms, 80ms, 10ms at full load
Withstand voltage I/P-O/P:4.2KVAC
Working temperature -35~+70°C
Safety standards DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved
EMC standards EN55032 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 195x68x39.5mm
Packing 9pcs/12.88Kg
