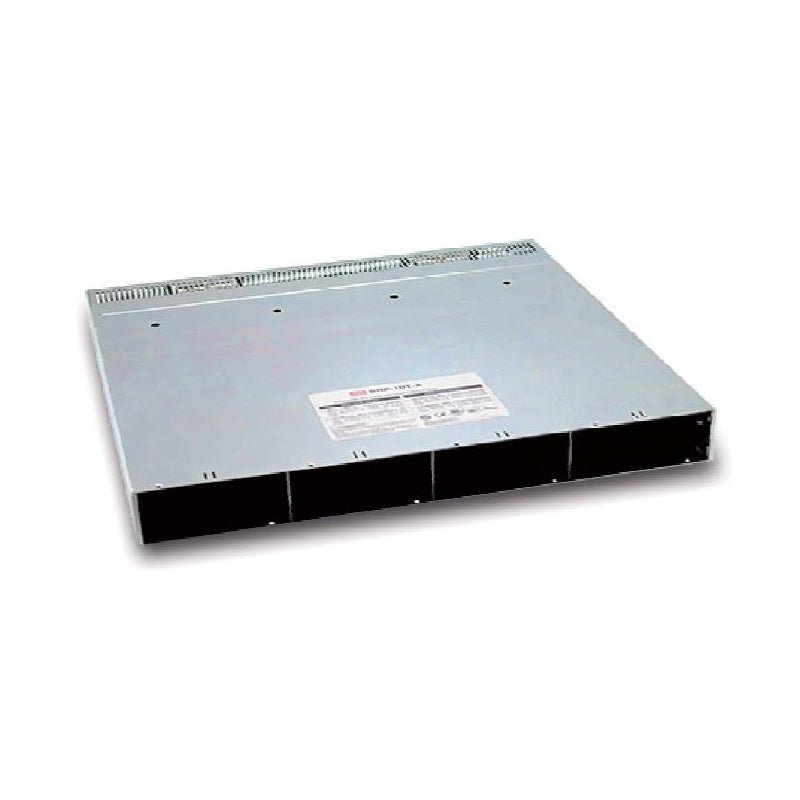

DHP-1UT-A

DHP-1UT-A

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input/Full range
1U profile 19" rack shelf, fitting four 3200W modules up to 12800W with active current sharing
Output voltage and current programmable
Support hot swap(hot plug)
Built-in PMBus protocol(Optional CANBus protocol
5 years warranty



General Specification

AC input voltage range 90~264VAC; 127~370VDC
Leakage current <1.5mA / 230VAC
Auxiliary power 5V @ 0.3A, tolerance 10%, ripple 150mVp-p, 12V @ 0.8A, tolerance 10%, ripple 450mVp-p
Withstand voltage I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 700VDC
Working temperature -30~+70ºC (refer to output derating curve)
Safety standards UL62368-1, CSA C22.2 , TUV EN62368-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11
Case No 257
Dimension (LxWxH) (mm) Rack 400*482.6*44(with mounting bracket); 400*440*44(without mounting bracket)
Packing 3pcs/17.5Kg
