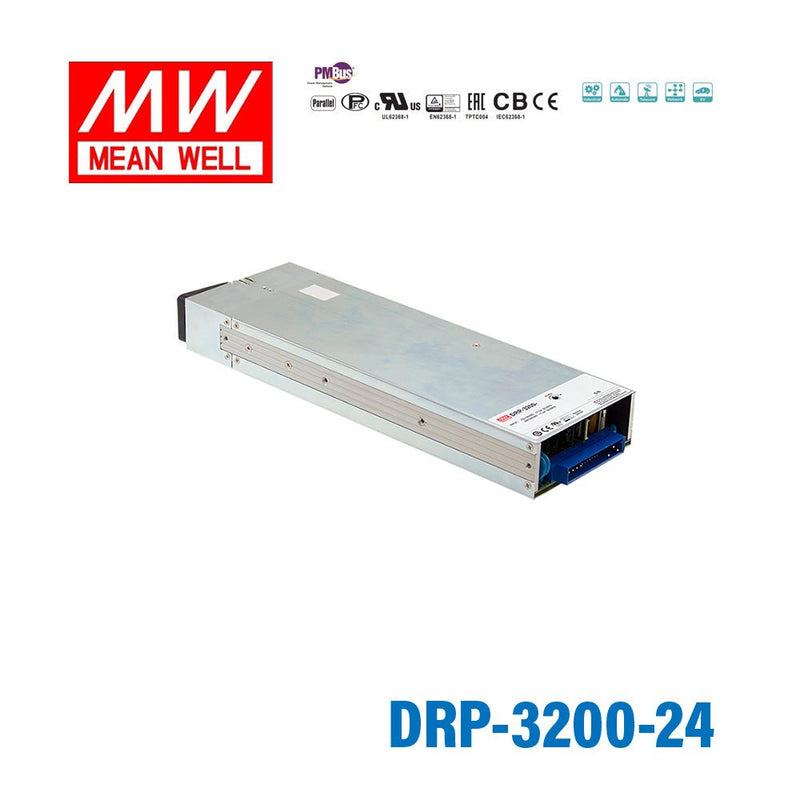

DRP-3200-24

DRP-3200-24

Sold out
$768.54 - $768.54
$768.54
$768.54 - $768.54
$768.54
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$730.11
20+
$714.74
50+
$699.37
100+
$684.00
200+
$668.63
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable/td>
Active current sharing up to 12800W for one 19" rack shelf
Built-in I²C interface, support PMBus protocol (Optional CANBus protocol)
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

General Specification

AC input voltage range 90 ~ 264VAC | 127 ~ 370VDC
AC inrush current (230VAC) COLD START 55A/230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~53V%
Overload protection 105 ~ 115% rated current | Protection type: Constant current limiting shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
Over-voltage protection Range 131% ~ 156%
Over-voltage protection Type Protection type: Shut down o/p voltage, re-power on to recover
Over temp. protection Shut down o/p voltage, recovers automatically after temperature goes down
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC, 1 minute
Working temperature -30~+70°C
Safety standards UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 325 x 107 x 41mm
Case No. 256
Packing 2.65Kg;4pcs/11.6Kg/0.87CUFT
