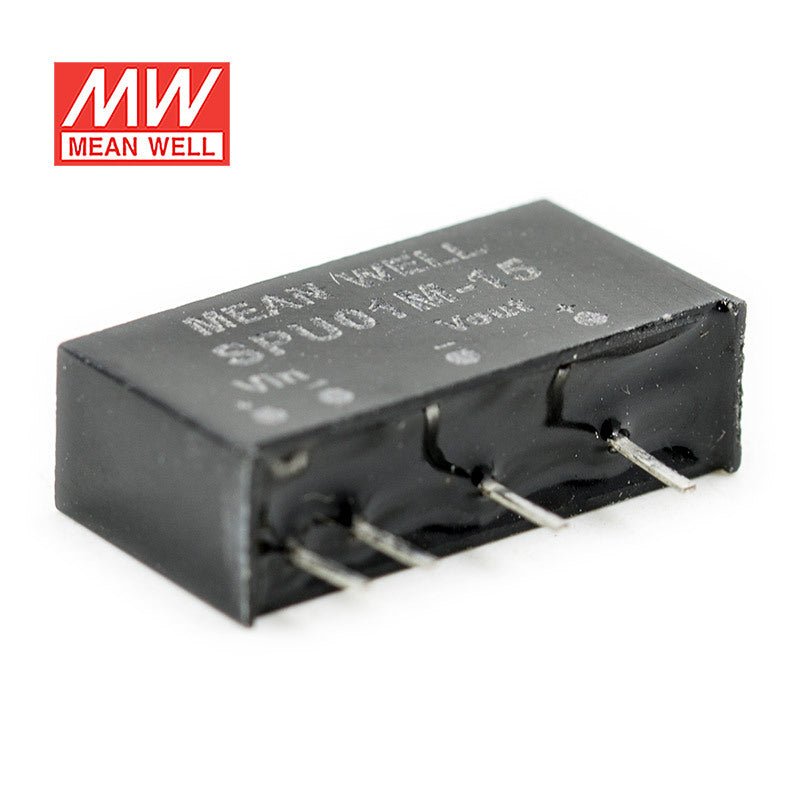

SPU01M-15

SPU01M-15

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

SIP6 package with industry-standard pinout
Wide operating temperature range -40~+90°C
High efficiency up to 84%
Comply to BS EN/EN55032 radiated Class A without additional components
Low cost
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

General Specification

Voltage accuracy ±3.0%
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling Free-air convection
Short circuit protection 1-second max
Working temperature -40°C to +90°C
EMC Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
Potting material UL 94V-0 rated
