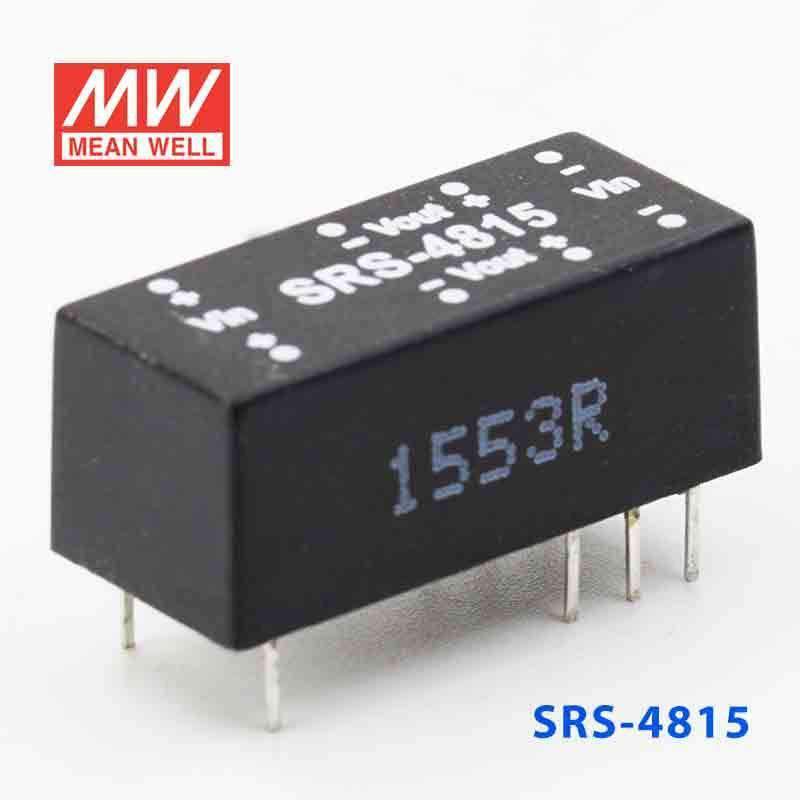

SRS-4815

SRS-4815

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

1000VDC I/O isolation
Internal SMD technology
Built-in EMI filter
Protection: Short circuit
Cooling by free air convection
Non-conductive plastic case
Dual in line package
100% full load burn-in test
Low cost, high reliability
2 years warranty

General Specification

Voltage set point accuracy ±2% (typical)
Line regulation ±1% (max.)
Load regulation ±1% (max.)@10~100% load
Input reflected ripple 120mVp-p
Efficiency 60% (typical)
Short circuit protection Continuous, auto-recovery
Switching frequency 50kHz (min.)
I/O isolation voltage 1000VDC (min.)
I/O isolation resistance 100MQ(min.)@500DC
Isolation capacitance 80pF (max.)
Working temperature -25°C to +60°C (no derating), +71°C@80% load
Storage temperature -25°C to +105°C
Temp. Coefficient ±0.03% / °C (max.)
Case material non-conductive plastic
Dimension (LxWxH) (mm) 0.89""x 0.39""x 0.33""
