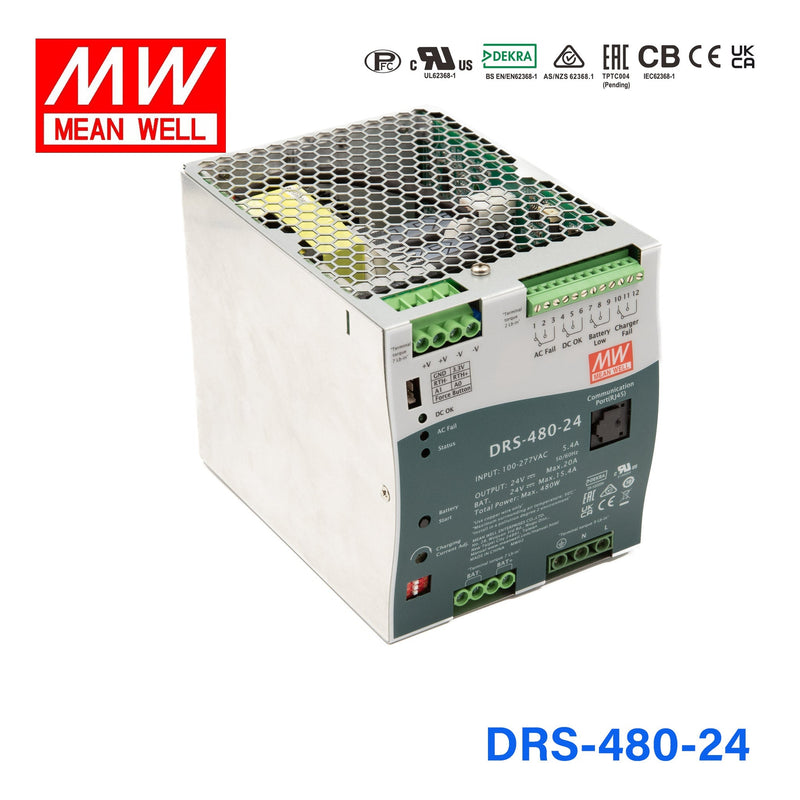

DRS-480-24

DRS-480-24

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal input 90~305VAC(277VAC available)
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarm design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK
Load-dependent high speed battery charging
Built-in MODBus Protocol, CANBus optional
Protections: Short circuit/Overload/Over voltage/Over temperature(auto derating)/Battery reverse polarity/Battery cut off
Cooling by free air convection
Charging curve can be set with SBP-001
2 or 3-stage selectable by DIP S.W
20~100% charging current adjustable by VR
Suitable for lead acid and lithium-ion batteries
3 years warranty

General Specification

AC input voltage range 90~305VAC; 127~431VDC
AC inrush current Cold start 30A at 115VAC, 60A at 230VAC
Adjustment charging current 20%~100% charging current adjustable by VR
Overload protection 105%~135% rated output power
Over voltage protection 135%~155% rated output voltage
Setup, rise, hold up time 2400ms, 1000ms, 16ms at 230VAC
Withstand voltage I/P-O/P:4kVAC, I/P-FG:2kVAC, O/P-F-G:1.5kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL62368-1, RCM AS/NZS 62368.1 approved
EMC standards EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8
Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 85.5x125.2x129.2
Packing 8pcs / 12.5kg
