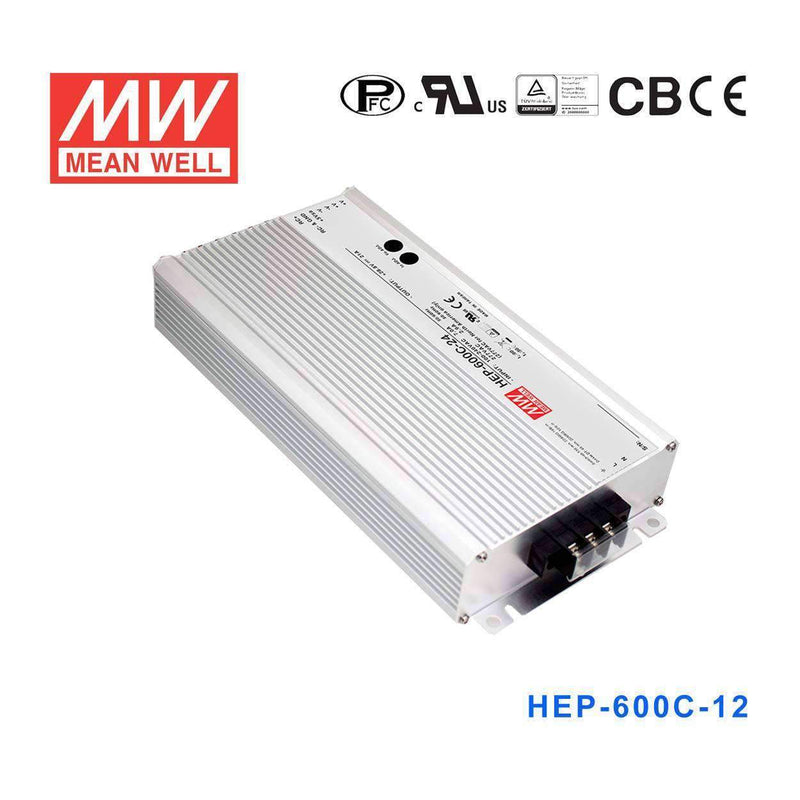

HEP-600C-12
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
Out of stock
Same-Day Order Fulfillment
Same-day shipping on orders placed before 1:00 PM Eastern Time
DATASHEET
DESCRIPTION
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 96% |
| Built-in active PFC function |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| No load power consumption<0.5W at remote OFF |
| Cooling by free air convection |
| Output current adjustable |
| Aluminum case and filling with heat-conducted glue |
| Withstand 10G vibration test |
| LED indicator for power on |
| 6 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| DC adjustment range | -10%~+10% rated output voltage (A-Type only) |
| Current adjustment range | 50%~100% |
| Over current protection | 105%~125% constant current limiting, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL62368-1, TUV BS EN6236-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | 3P / 11mm pitch terminal block with cover |
| Connection Output | 7P / 11mm pitch terminal block with cover |
| Dimension (LxWxH) (mm) | 280x 144x 48.5 |
