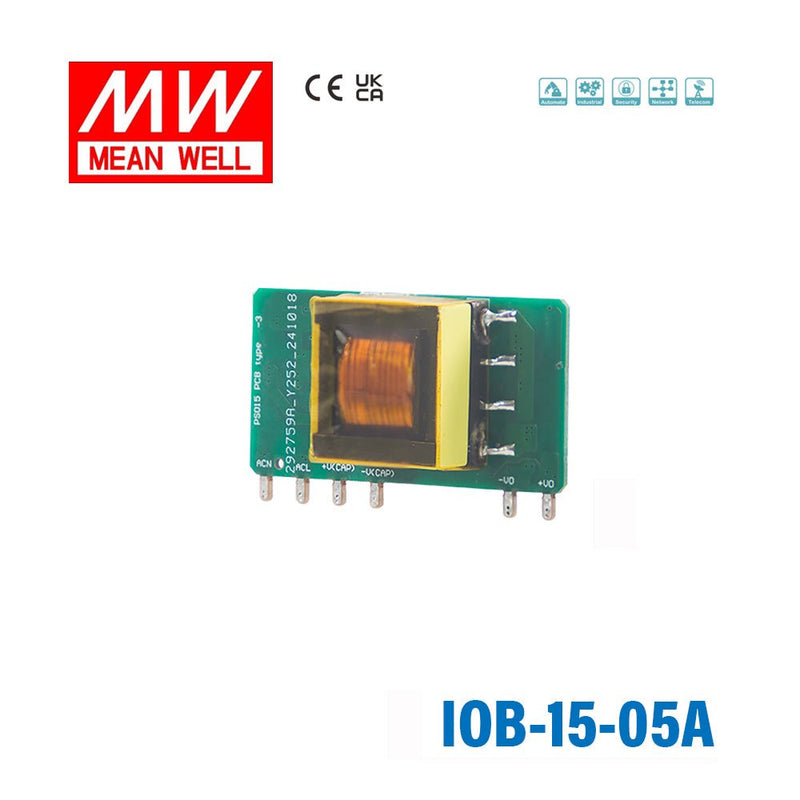

IOB-15-05A

Features:

• Assemble on the main PCB of the system
• 1.75"x0.86" compact size
• 85~305Vac input (277Vac available)
• No load power consumption <0.25W
• -40~85℃ wide operating temperature
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Safety Class Ⅱ
• 3 years warranty

  General Specification:


Input Voltage
85 - 305Vac 100 - 430Vdc
Ripple and Noise
150mV
Short Circuit Protection
Protection type : Continuous, automatic recovery, Hiccup mode
Inrush Current
18A/115Vac 35A/230Vac
Over Load Protection
>110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
9Vdc | 9Vdc | 12Vdc | 16Vdc | 20Vdc | 30Vdc
Protection type: Output voltage clamp
Withstand Voltage
I/P-O/P:3KVac leakage current <5mA
Working Temperature
-40 - +85℃ (Refer to "Derating Curve")
Safety Standard
LVD IEC62368-1 approved
Dimension (LxWxH)
44.5 x 24 x 15mm (1.039 x 0.579 x 0.433 inch)
