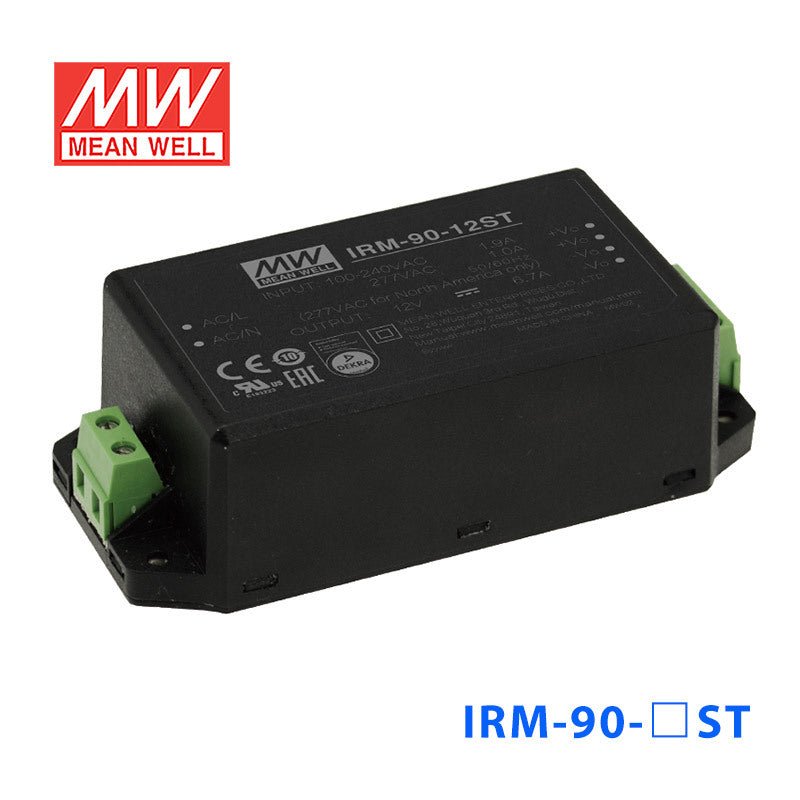

IRM-90-24ST
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
Out of stock
Same-Day Order Fulfillment
Same-day shipping on orders placed before 1:00 PM Eastern Time
DATASHEET
DESCRIPTION
Features
| Universal AC input 80~305VAC |
| No load power consumption < 0.21W |
| Protections: Short circuit / Overload / Over voltage |
| Compact size |
| Cooling by free air convection |
| Isolation class II |
| Operating attitude up to 4000 meters |
| 100W peak(10 sec) |
| 3 years warranty |
General Specification
| AC input voltage range | 85~305VAC |
| AC inrush current (max.) | Cold start, 30A at 115VAC, 65A at 230VAC |
| Setup, rise, hold up time | 1000ms, 30ms, 30ms |
| Overload protection | 115%~160% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+80°C |
| Leakage current | Less than 0.25mA at 240VAC |
| Safety standards | UL62368-1, IEC62368-1 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55035 |
| Dimension (LxWxH) | PCB mounting style : 87x 52x 29.5mm Screw terminal style : 109x 52x 33.5mm |
| Packing | PCB mounting style : 60pcs/11.8Kg Screw terminal style : 50pcs/12Kg |
