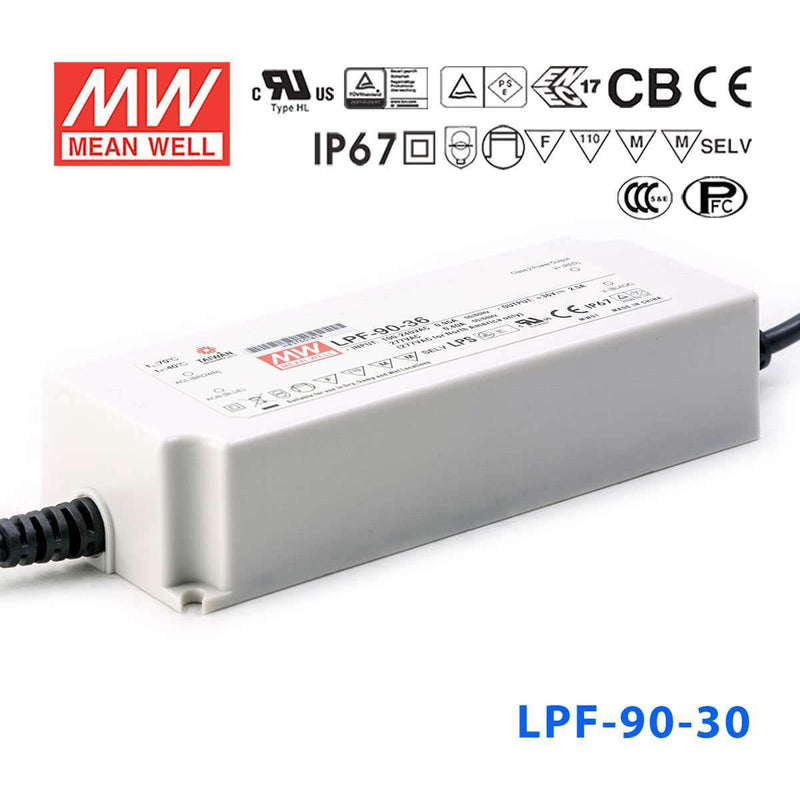

LPF-90-30

LPF-90-30

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
Fully isolated plastic case
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type
Fully encapsulated with IP67 level
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Protections: Short circuit / Over current / Over voltage / Over temperature
Suitable for LED lighting and moving sign applications
Suitable for dry, damp, and wet location
Cooling by free air convection
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 55A at 230VAC
Over current protection 95% ~108% constant current, auto-recovery
Over voltage protection 110%~150% rated output voltage
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 161x 61x 36
