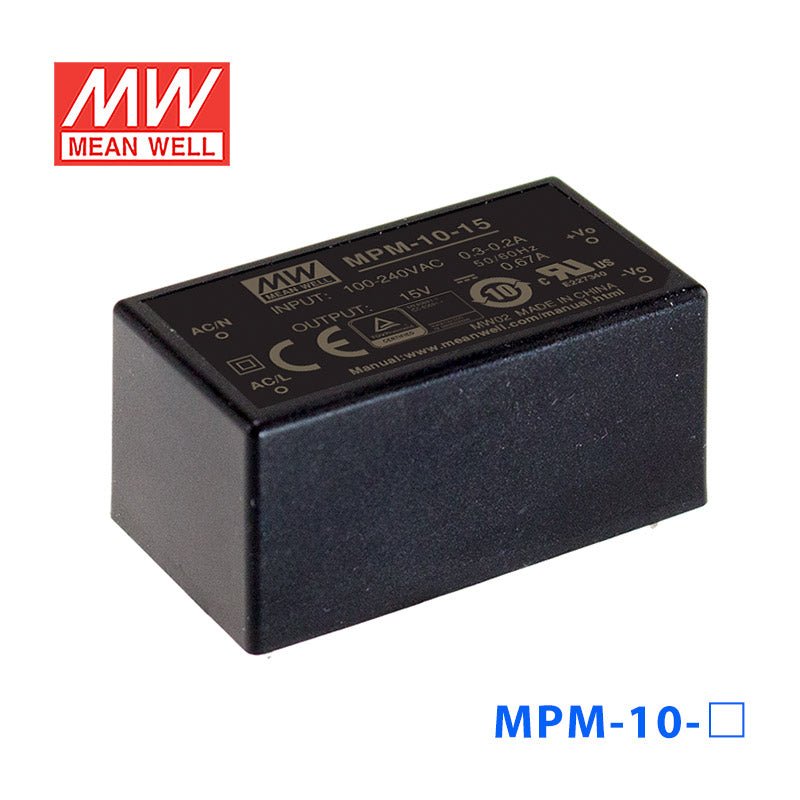

MPM-10-24
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
Out of stock
Same-Day Order Fulfillment
Same-day shipping on orders placed before 1:00 PM Eastern Time
DATASHEET
DESCRIPTION
Features
| 1.8"x1" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No load power consumption<0.075W |
| Extremely low leakage current |
| Wide operating temp. range -30~+85°C |
| EMI class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current | COLD START 25A/115VAC |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 110 ~ 180% rated output power |
| Over voltage protection | 115%~151% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 40ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -30~+85°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 291A |
| Dimension (LxWxH) | 45.7x25.4x21.5 |
| Packing | 270pcs / 10.5kg |
