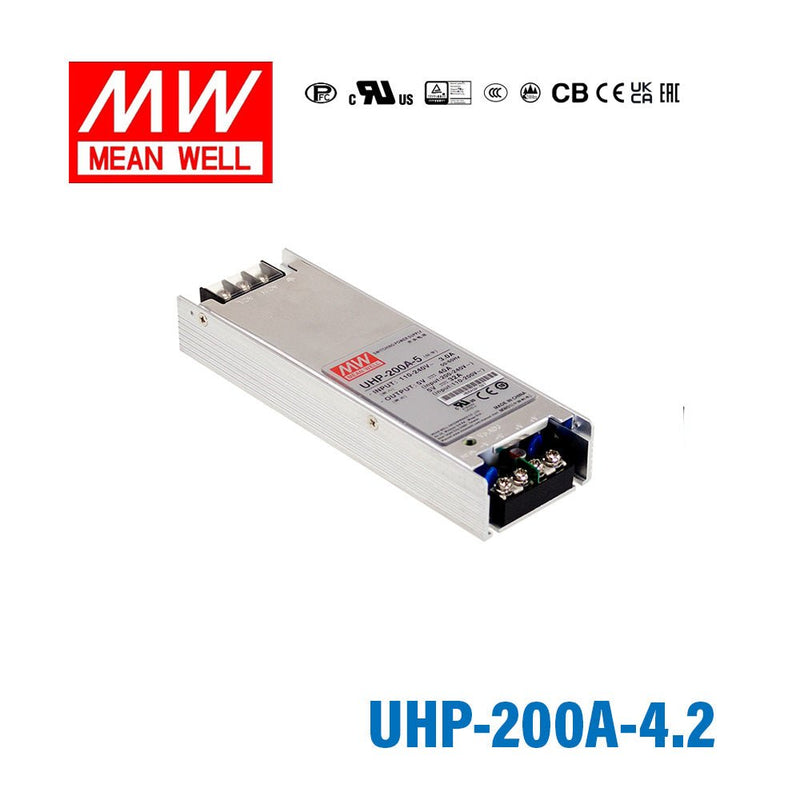

UHP-200A-4.2

Features:
⦁ Universal AC input / Full range
⦁ Withstand 300VAC surge input for 5 seconds
⦁ Low profile: 26mm
⦁ Built-in active PFC function
⦁ Fanless design, cooling by free air convection
⦁ Protections: Short circuit / Overload / Over voltage / Over temperature
⦁ Low leakage current <1.0mA
⦁ LED indicator for power on
⦁ 3 years warranty
General Specification
AC Input Voltage Range
90 - 264VAC 127 - 370VDC
AC Inrush Current (max.)
Cold start 85A/230VAC
Overload Protection
110-140% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over-voltage Protection
(4.6 - 6V) (5 - 6.4V) (5.6 - 7.1V)
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Temperature
Protection type: Shut down O/P voltage, recovers automatically after fault condition is removed
Withstand Voltage
I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working Temperature
-30 - +70℃ (Refer to “OUTPUT LOAD vs TEMPERATURE")
Safety Standards
UL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approved
Dimension (LxWxH)
167x55x26mm
