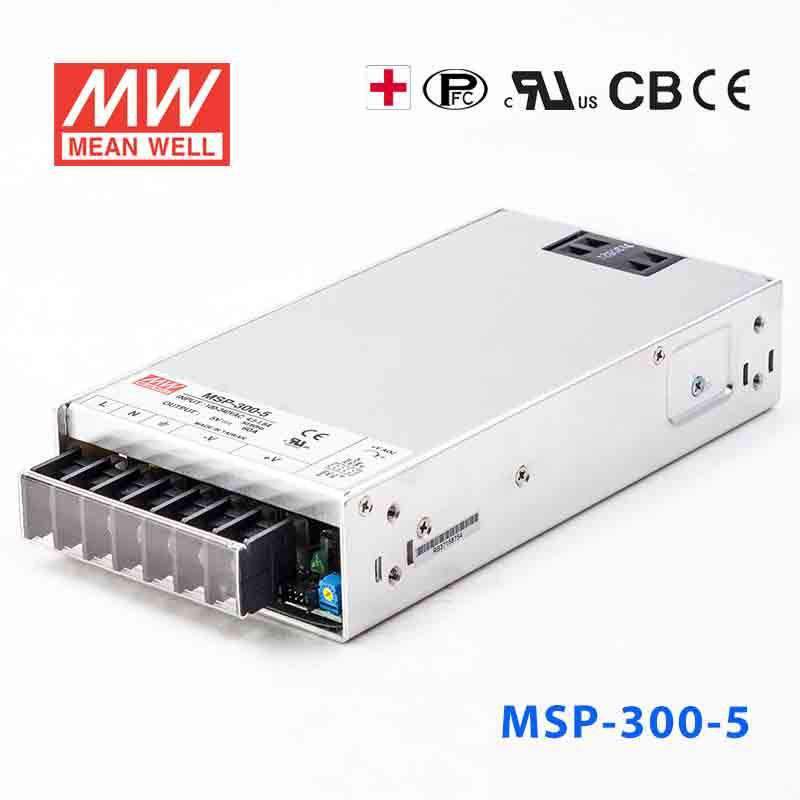

MSP-300-5

MSP-300-5

Sold out
$117.65 - $117.65
$117.65
$117.65 - $117.65
$117.65
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$111.77
20+
$109.41
50+
$107.06
100+
$104.71
200+
$102.36
*Import tariff is included in the listed price. You pay exactly what you seeβ€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Cooling by free air convection
1U low profile 41mm
Medical safety approved (MOOP level)
Built-in remote ON-OFF control
No load power consumption<0.5W
Standby 5V@0.3A
Built-in remote sense function
5 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) 35A/115VAC 70A/230VAC
Over current protection 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection 110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+70ΒΊC (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 199x 105x 41 mm
