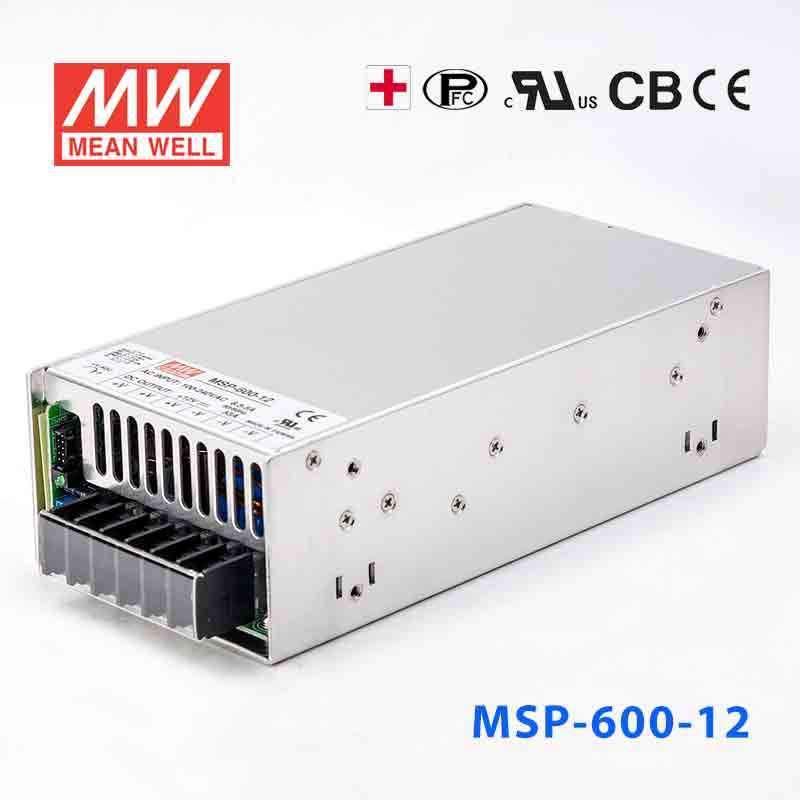

MSP-600-12

MSP-600-12

Sold out
$194.78 - $194.78
$194.78
$194.78 - $194.78
$194.78
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$185.04
20+
$181.15
50+
$177.25
100+
$173.35
200+
$169.46
*Import tariff is included in the listed price. You pay exactly what you seeβ€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling Fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
No load power consumption<0.8W
Standby 5V@0.3A
Built-in remote sense function
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) 35A/115VAC 80A/230VAC
Over current protection 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection 110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+70ΒΊC (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm) 218x 105x 63.5 mm
