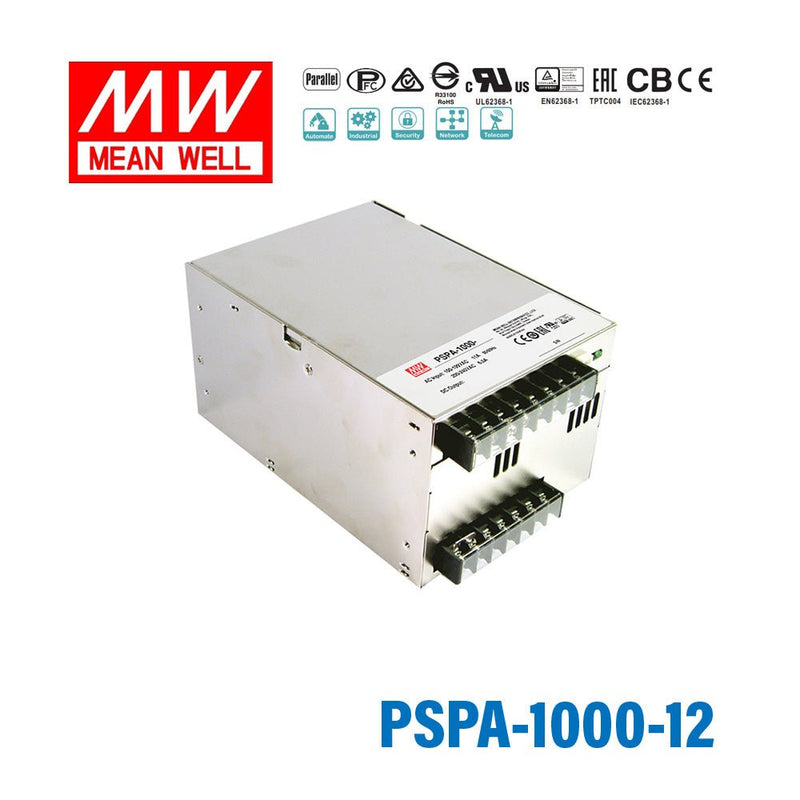

PSPA-1000-12
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
Out of stock
DATASHEET
DESCRIPTION
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Built-in remote sense function and ON/OFF control |
| Current sharing up to 2400W (3+1) |
| With DC OK signal output |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~140% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V) |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |
| Connection | 7+8P / 9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 170x120x93 |
| Case No. | 910A |
| Packing | 8pcs / 16.4kg |
