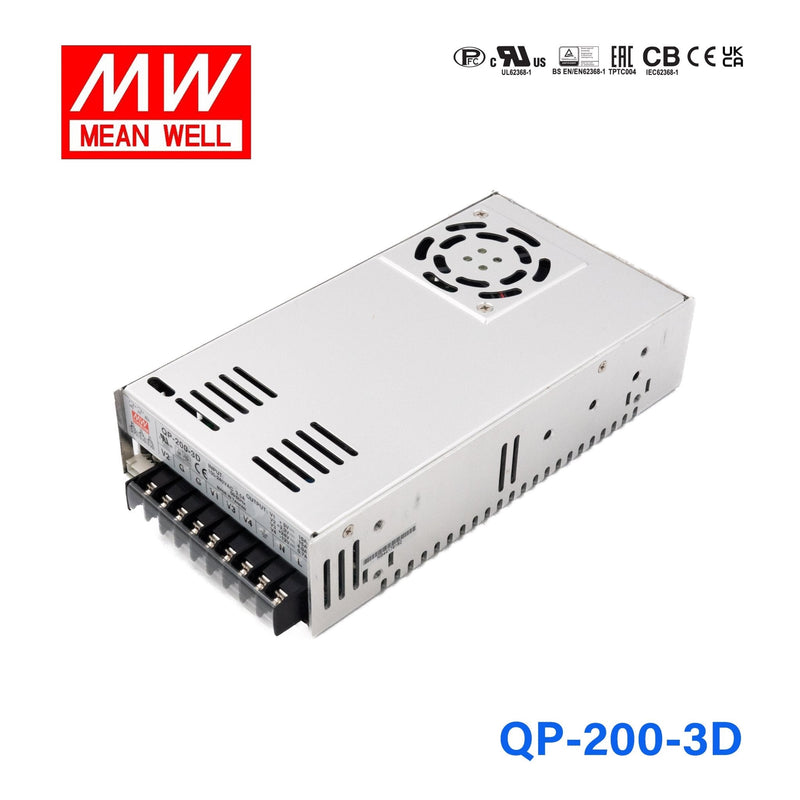

QP-200-3D
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
Out of stock
DATASHEET
DESCRIPTION
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| Protection: Short circuit / Over current / Over voltage / Over Temperature |
| Forced air cooling by built-in DC fan |
| With power good and fail signal output(Optional) |
| Built-in remote sense function for CH1, 2 |
| 100% full load burn-in test |
| CH4 can set to positive after consult us before delivery |
| Fixed switching frequency at PFC:67KHz PWM:134KHz |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 2.0% |
| Overload protection Range | 105 ~ 150% rated output power |
| Overload protection Type | Constant current limiting, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -10 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1 EAC TP TC 004 approved |
| Dimension (LxWxH) (mm) | 215*115*50mm (L*W*H) |
| Packing | 1.2Kg; 12pcs/15.4Kg/0.9CUFT |
