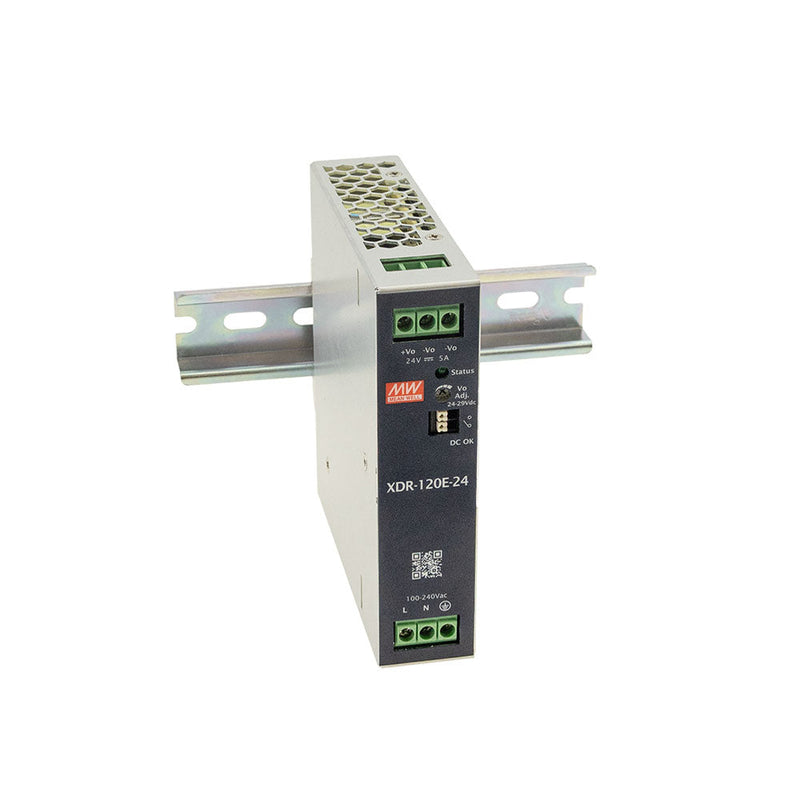

XDR-120E-24

Features:

• 85~264Vac input range
• Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
• 30mm slim width(30mm slim width)
• High efficiency up to 91% and no-load power dissipation<1W
• Built-in constant current limiting circuit
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Fanless design, cooling by free air convection
• Overvoltage category III (OVC III)
• -40°~+70°C wide range operation temperature (>+50°C derating)
• Operating altitude up to 5000 meters
• Built-in DC OK relay contact
• Can be installed on DIN rail TS-35/7.5 or 15
• 3 years warranty

General Specification

AC input voltage range

85 - 264Vac

AC inrush current (max.)

COLD START 20A /115V 40A/230V

Overload Protection

105-130% rated output power, constant current limiting without shutdown, recovers automatically after fault condition is removed

Over Voltage Protection

(15-18V) (30-34V) (43-50V) (56-65V)

Protection type : Shut down o/p voltage, re-power on to recover

Over temperature Protection

Protection type : o/p voltage, Shut down recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac

Working temperature

-40 ~ +70℃ (Refer to "Derating Curve")

Safety standards

UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61; RCM AS/NZS 61558-1/-2-16;BIS IS13252 (Part 1):2010; BSMI CNS1 -1; CCC GB4943.1; EAC TPTC004 approved; KC KC62368-1 certified no stock ,contact sale for inquires

Dimension (LxWxH)

30*125.2*116mm (W*H*D)
