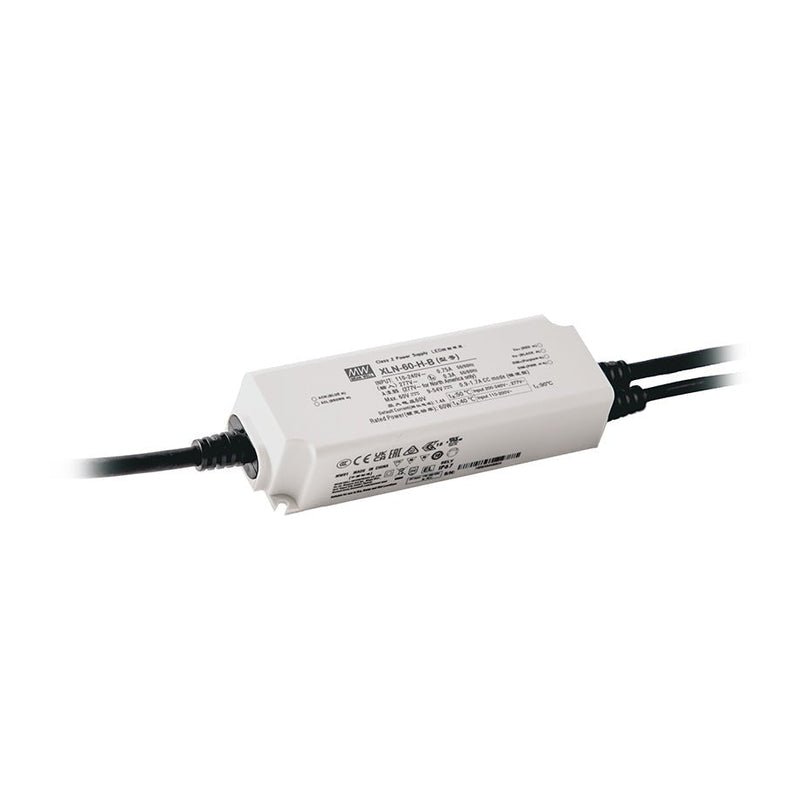

XLN-60-24

Features:

• Constant power mode output with multiple stages selectable by NFC setting(H-type)
• Constant voltage mode output (12V/24V/48V)
• Plastic housing with class II/2 and PFC design
• Flicker-free, complying with IEEE1789/ErP
• Standby power consumption <0.5W
• Meet emergency lighting (EL) application
• Fully encapsulated with IP67
• Minimum dimming level <1% (DALI-2 DT6)
• Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
• 5 years warranty

General Specification

AC input voltage range

110305VAC 155431VDC

AC inrush current (max.)

COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Overload protection

105 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 1417V | 2735V | 56~63V |

Shut down output voltage, and re-power it to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved;

Dimension (LxWxH)

141.5x49x32mm
