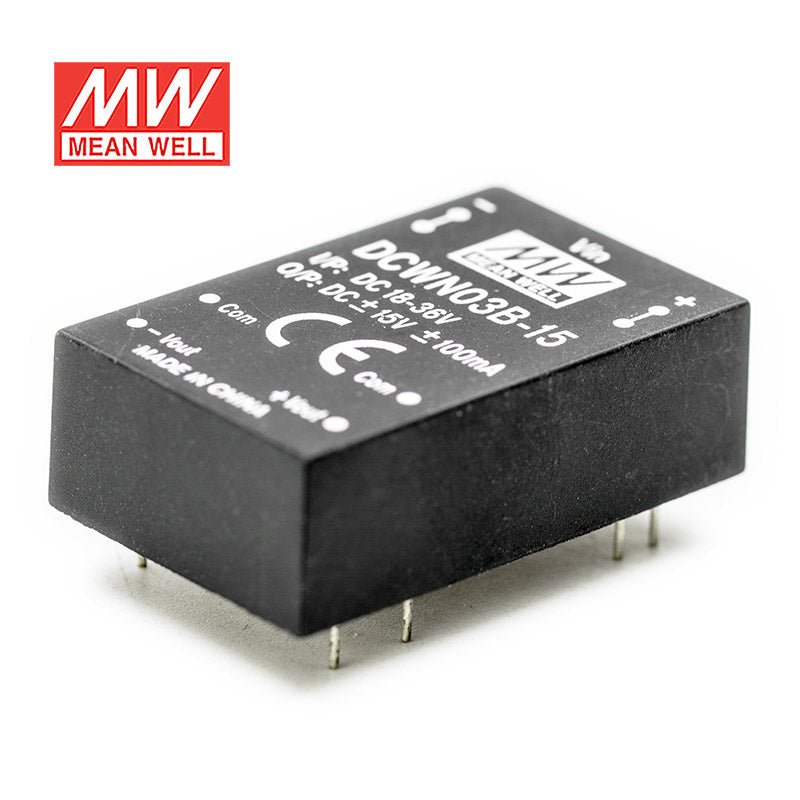

DCWN03B-15

DCWN03B-15

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

DIP24 package with industry-standard pinout
2:1 wide input range
Operating temperature range -40~+90°C
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protections: Short circuit(Continuous)/Overload/Input under voltage
3KVDC I/O isolation
3 years warranty

General Specification

Voltage set point accuracy ±1.5% (max.)
Line regulation ±0.5% (max.)
Load regulation Single output models:±0.5%, Dual output models:±1%
Overload protection 120%~250%, auto-recovery
Efficiency 87% (typical)
Short circuit protection Continuous, auto-recovery
I/O isolation voltage I/P-O/P:3KVDC
I/O isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Isolation capacitance 250pF (max.)
Working temperature -40~+90°C
Storage temperature -40°C to +105°C
EMC Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
Case material Non-conductive black plastic(UL 94V-0 rated)
