RD-35

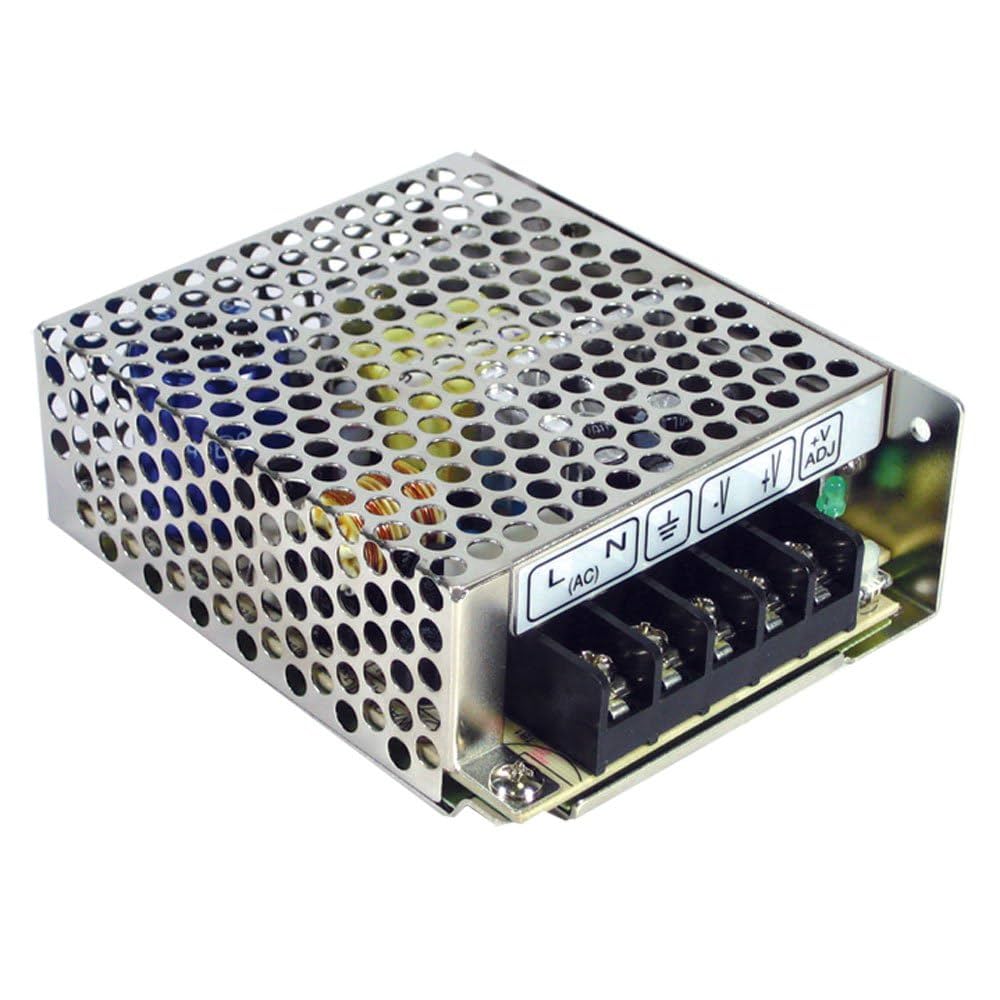

Mean Well RD-35 – 35W Dual Output Enclosed Power Supply

Description:
The RD-35 is a compact enclosed AC/DC power supply that provides dual DC outputs, making it suitable for control systems, instrumentation, and applications requiring both positive and negative voltages.

Technical Specifications:

• Output Power: 35W

• Output Voltages (model dependent):

  • RD-35A: +5V (3A), +12V (2A)

  • RD-35B: +5V (3A), +15V (1.5A)

  • RD-3513: +13.8V (2.8A), –13.8V (0.5A)

• Input Voltage Range: 88 ~ 264VAC / 125 ~ 373VDC

• Efficiency: Up to ~78% (depending on model)

• Ripple & Noise: ≤80mVp-p (5V), ≤120mVp-p (others)

• Protections: Short circuit, overload, over-voltage

• Cooling: Convection cooled

• Dimensions: 99 × 82 × 36 mm

• Warranty: 2 years
