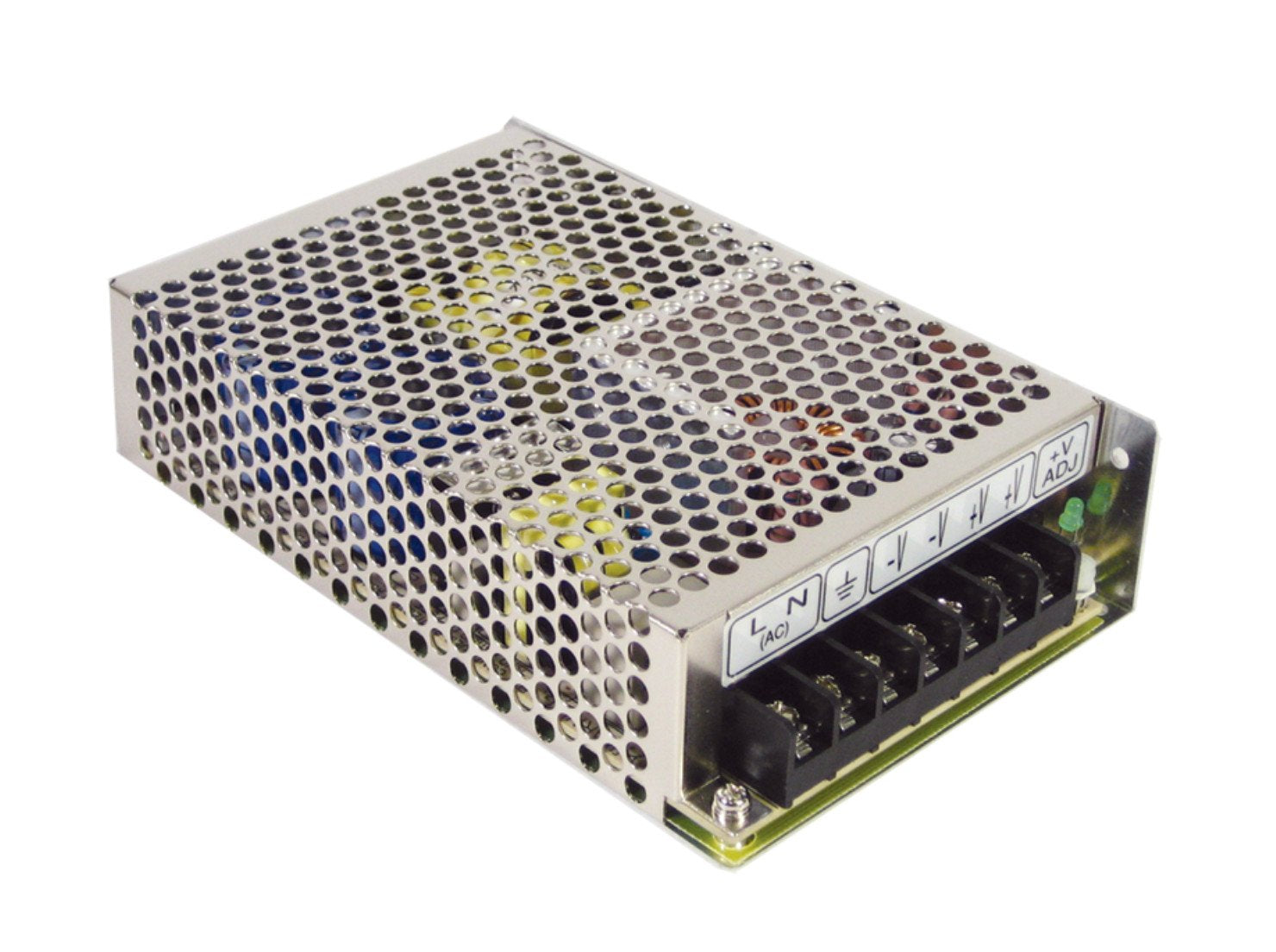

Mean Well RQ-85 Series – 85W Quad Output Enclosed Power Supply

Overview

The RQ-85 series delivers 85W of total power with four isolated DC outputs in one compact chassis. It is designed for applications where multiple system voltages are required, making it ideal for industrial automation, telecommunications, and electronic instruments.

Key Features

• Rated Power: 85W

• Universal AC Input: 88 ~ 264VAC / 125 ~ 373VDC

• Protections: Short Circuit / Overload / Overvoltage

• Cooling: Free air convection (fanless)

• Efficiency: ~77%

• LED Indicator: Power On

• Dimensions: 159 × 97 × 38 mm

• Warranty: 2 years

Models and Outputs

RQ-85B

• +5V ⎓ 8A

• +12V ⎓ 3.5A

• -5V ⎓ 1A

• -12V ⎓ 1A

RQ-85C

• +5V ⎓ 8A

• +15V ⎓ 2.5A

• -5V ⎓ 1A

• -15V ⎓ 1A

RQ-85D

• +5V ⎓ 8A

• +24V ⎓ 2A

• -5V ⎓ 1A

• -24V ⎓ 1A

Typical Applications

• Industrial automation equipment

• Process control systems

• Test and measurement devices

• Telecommunication systems

• Projects requiring quad isolated DC outputs in one compact PSU
