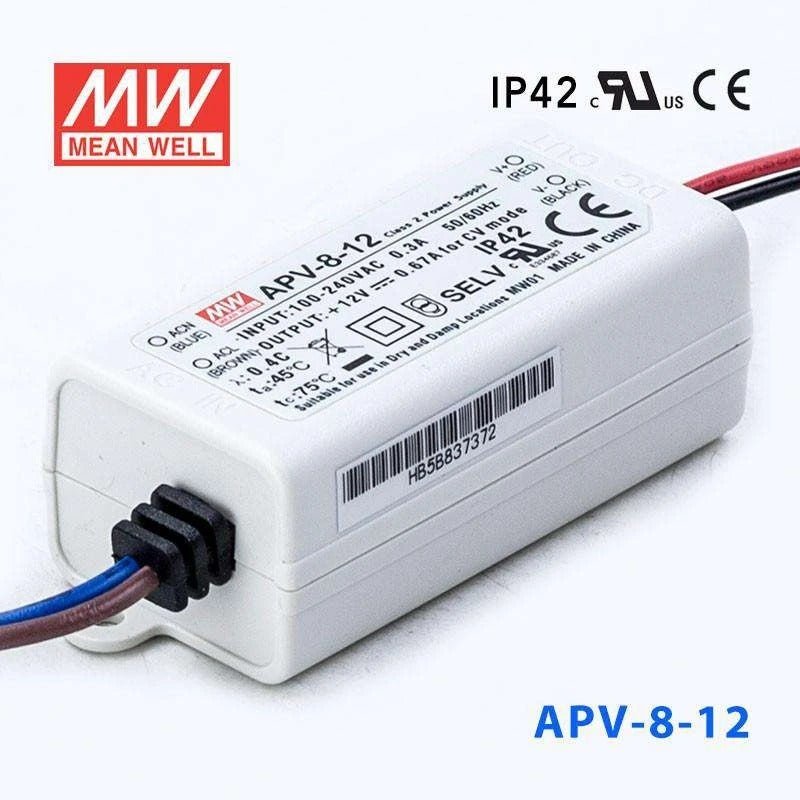

APV-8-12

• Constant Voltage Design
• Output: 12V, 0.67A, 8.04W
• Universal AC Input / Full Range
• Class II Power Unit, No FG
• Fully Isolated Plastic Case
• IP42 Design
• Small and Compact Size
• Cooling by Free Air Convection
• Protections: Short Circuit / Overload / Overvoltage
• No-Load Power Consumption <0.5 W
• 100% Full Load Burn-In Test
• Low Cost, High Reliability

Applications

• Suitable for LED-related devices (such as LED decoration or advertising devices)

Description

The APV-8 series is a single-output constant voltage mode AC / DC LED power supply of 8W. It accepts a full-range input of 90 ~ 264 VAC and provides three models with different output voltages: 5V, 12V, and 24V, which are commonly used in small wattage LED applications. With a Class II design (no FG pin) and a 94V-0 flame-retardant plastic case, the APV-8 is ideally suited for entry-level LED applications.
