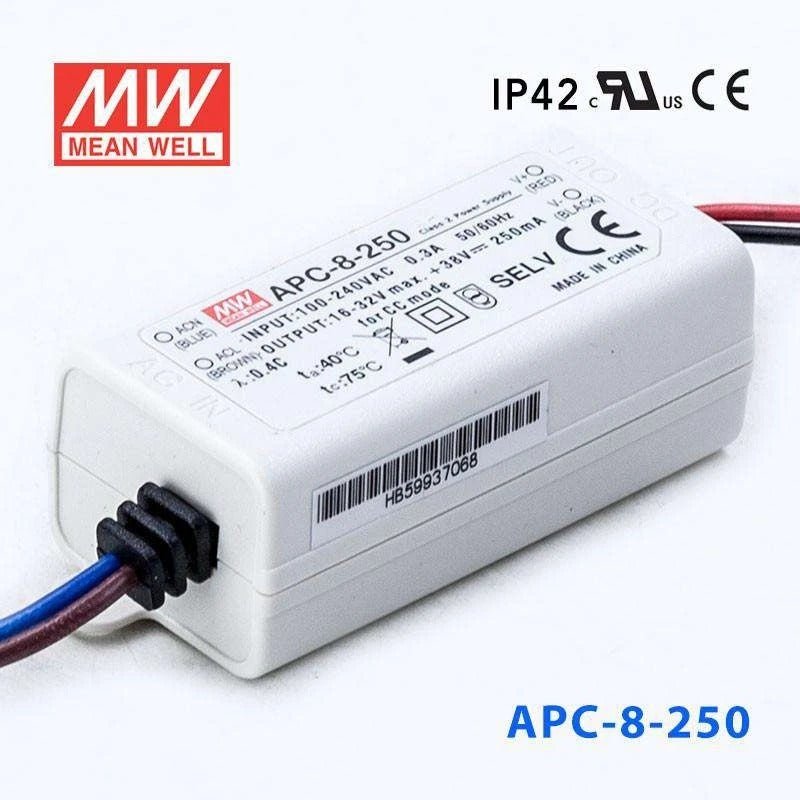

APC-8-250

• Constant Current Design
• DC Voltage Range (Output): 16 ~ 32V
• Nominal Current: 250mA
• Nominal Power: 8W
• Universal AC Input / Full Range

• Class 2 Power Unit, No FG
• Fully Isolated Plastic Case
• IP42 Design
• Small and Compact Size
• Cooling by Free Air Convection
• Protections: Short Circuit
• No-Load Power Consumption <0.5 W
• 100% Full Load Burn-In Test
• Low Cost, High Reliability

Applications

• Suitable for LED-related devices or applications (such as LED decoration or advertising devices)

Description

The APC-8 series is a single-output, constant current mode, 8W AC/DC LED power supply. It accepts a full range input of 90 ~ 264VAC and provides four models with different output currents: 250mA, 350mA, 500mA, and 700mA, respectively, which are most commonly used in small-wattage LED applications. Leveraging a Class II design (no FG pin) and adopting a flame-retardant 94V-0 plastic housing, the APC-8 is ideally suited for entry-level LED applications.
