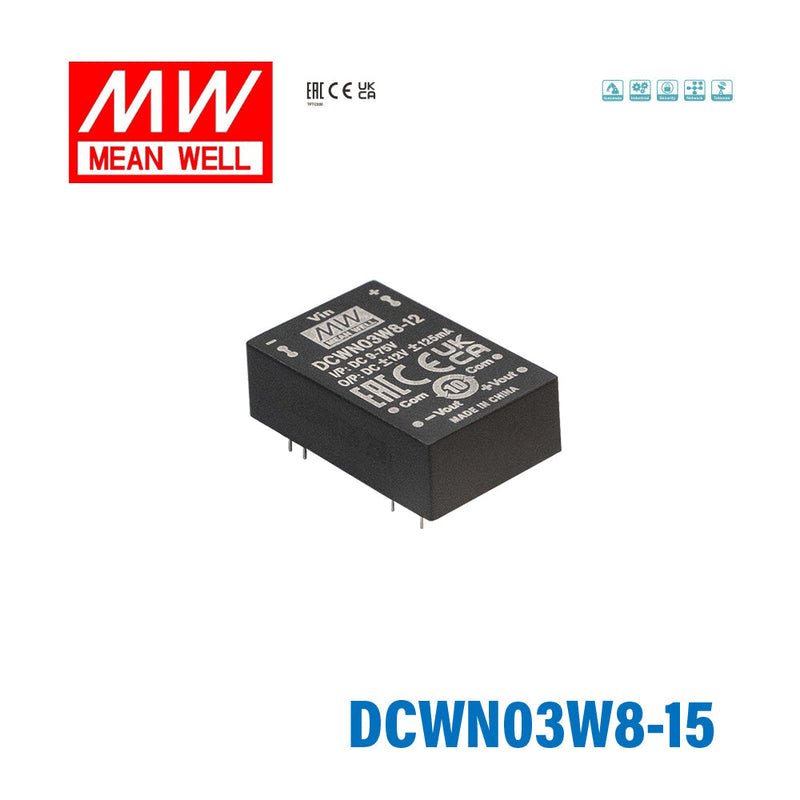

DCWN03W8-15

DCWN03W8-15

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features:

  • DIP24 package with industry standard pinout
  • 8:1(9~75Vdc) ultra-wide input range
  • Operating temperature range -40 ~ +95ā„ƒ
  • No minimum load required
  • Comply to BS EN/EN55032 radiated Class B without additional components
  • High efficiency up to 84%
  • Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
  • Remote ON/OFF control (Optional)
  • 3KVdc I/O isolation
  • 3 years warranty

    General Specification:

Ā
Input Voltage
Nominal 12V, 24V,36V,48V,72V (9 - 75V)
Protection
1A Fast-Acting Type
Over Load Protection
110 - 230% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Short Circuit Protection
Protection type : Continuous, automatic recovery
Over Voltage Protection
Protection type : Clamp by zener diode
Under Voltage Lockout
Start-up voltage: 8.8Vdc
Shutdown voltage: 8Vdc
Withstand Voltage
I/P-O/P:3KVdc
Operating Temperature
-40 - +95ā„ƒ (Refer to "Derating Curve")
Safety Standard
EAC TP TC 020/2011 approved
Dimension (LxWxH)
31.8 x 20.3 x 10.2mm
