DUPS40 MEAN WELL

Features:

• Uninterrupted UPS-DC controller.
• Parallel connection to the DC BUS (Power supply + UPS-DC Module + Batteries + Load).
• Suitable for 24V systems, up to 40A.
• Battery charge current of 2A.
• Allows lead-acid batteries between 4Ah and 135Ah of various capacities.
• Full diagnostic and monitoring for DC BUS OK, battery discharge, battery failure.
• LED indicator for signal status.
• Protections: Protection against reverse battery polarity and short circuit (via internal detection) / Battery discharge / Over-discharge protection.
• Cooling by free air convection.
• 3-year warranty.

Applications:

• Industrial control system.
• Semiconductor manufacturing equipment.
• Factory automation.
• Electromechanical devices.

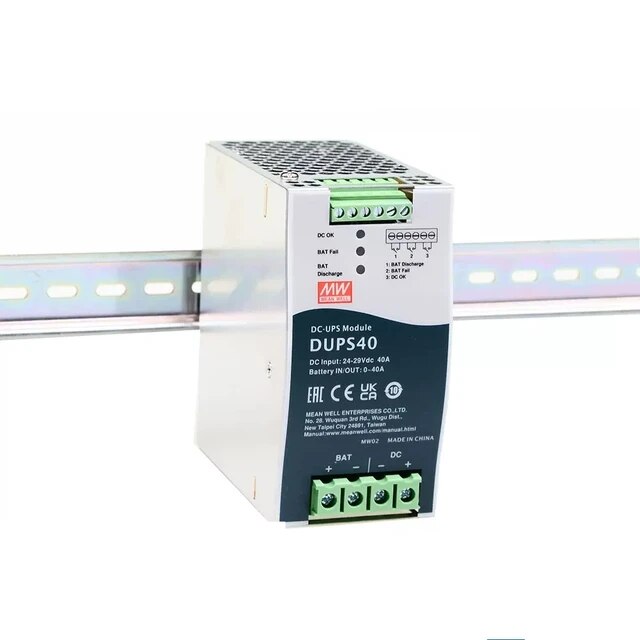

Description: The DUPS40 is a 40A DIN rail UPS-DC module, paired with a power supply and external battery to provide backup function. When the AC power supply fails or is interrupted, the load will immediately connect to the battery pack to prevent interruptions and ensure continuous operation of the entire system (operation time depends on the battery pack capacity). Key features of the DUPS40 include: quick installation, suitability for 24V battery packs with various capacities from 4Ah to 135Ah, 2A battery charging current, low voltage disconnect to protect the battery, and more. The product is suitable for use in data centers, security systems, emergency lighting, wireless communication UPS, central monitoring systems, etc.
