RT-50

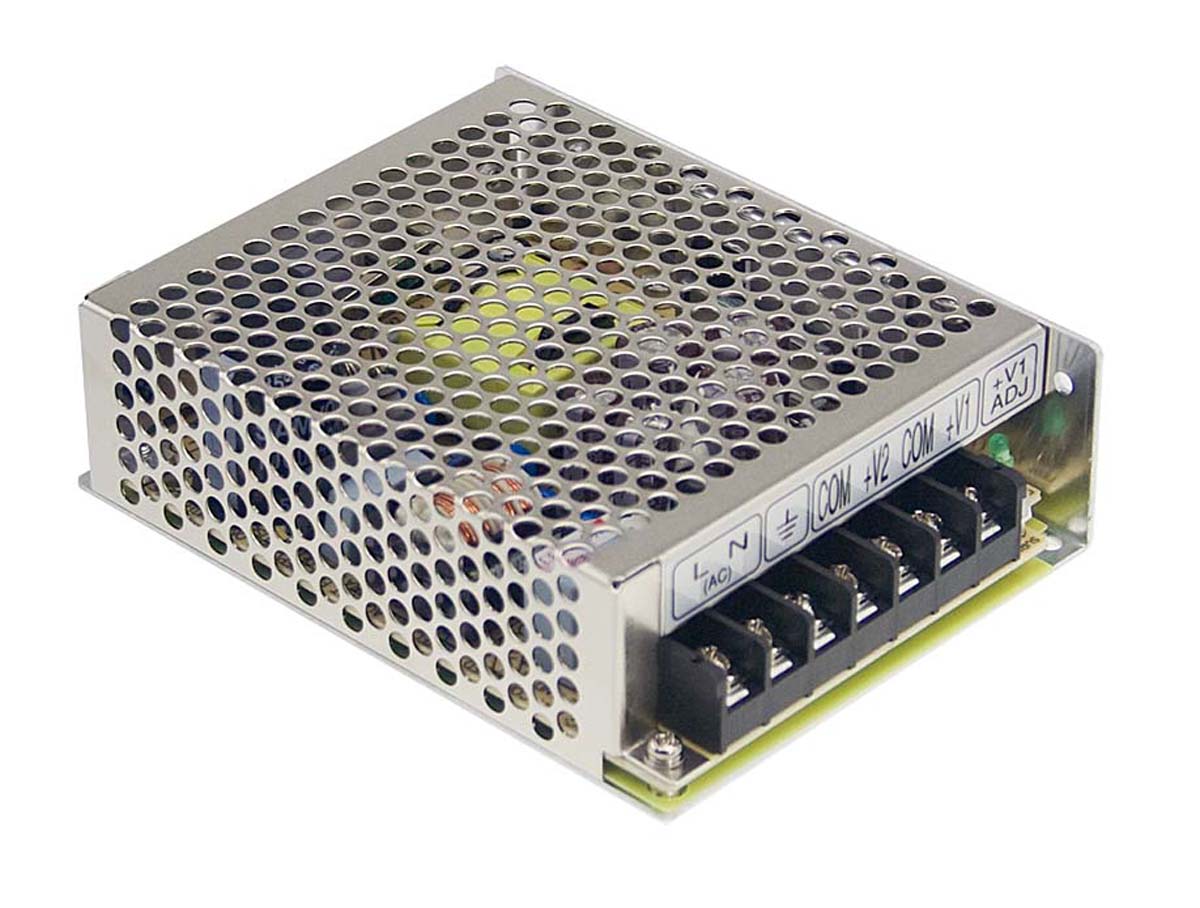

Mean Well RT-50 Series – 50W Triple Output Enclosed Power Supply

General Description

The RT-50 series offers triple output enclosed power supplies rated at 50W. It provides multiple DC outputs in a single unit, making it suitable for applications that require different voltage rails while saving space and cost.

Key Features

• Power rating: 50W

• Universal AC input: 88 ~ 264VAC / 125 ~ 373VDC

• Protections: Short circuit / Overload / Over voltage

• Cooling: Free air convection

• Efficiency: Up to ~77% (depending on model)

• Dimensions: 129 × 98 × 38 mm

• Warranty: 2 years

Models and Output Specifications

• RT-50A

  • +5V ⎓ 5A

  • +12V ⎓ 2A

  • -12V ⎓ 0.5A

• RT-50B

  • +5V ⎓ 5A

  • +15V ⎓ 2A

  • -15V ⎓ 0.5A

• RT-50C

  • +5V ⎓ 5A

  • +24V ⎓ 1A

  • -24V ⎓ 0.5A

• RT-50D

  • +5V ⎓ 5A

  • +48V ⎓ 0.5A

  • -48V ⎓ 0.5A

Typical Applications

• Industrial control systems

• Telecommunication equipment

• Automation devices

• Test and measurement instruments

• Applications requiring multiple DC rails
