UHP-1000-12

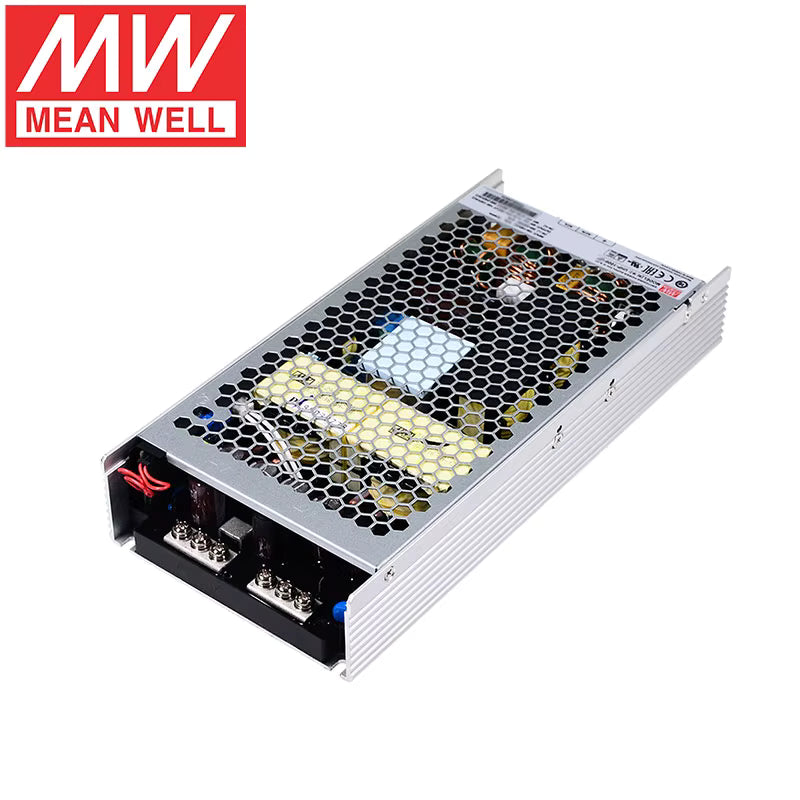

The Mean Well UHP-1000-12 is a 1000W ultra-slim single-output enclosed power supply, providing a stable 12V DC output at 83.4A. Designed with fanless convection cooling, high efficiency up to 95%, and advanced programmable functions, it delivers reliable performance in industrial, LED, and automation systems.

✅ Key Features:

• Universal AC input: 90–264VAC / 127–370VDC

• Output: 12V DC ⎓ 83.4A, 1000W rated

• Ultra-slim low-profile design: only 26mm height

• High efficiency up to 95%

• Cooling by free air convection (fanless)

• Built-in protections: Short circuit / Overload / Overvoltage / Overtemperature

• Control features: Remote ON/OFF, remote sense, voltage programming, current adjustment

• LED power indicator

• Robust enclosed design for industrial use

• Safety approvals: UL / CE / EAC certified

• Warranty: 3 years

📌 Typical Applications:

• Industrial automation and factory equipment

• High-power LED lighting systems

• Communication and networking devices

• Test and measurement instruments

• General-purpose 12V DC high-current applications

Datasheet:
