UHP-2500-36

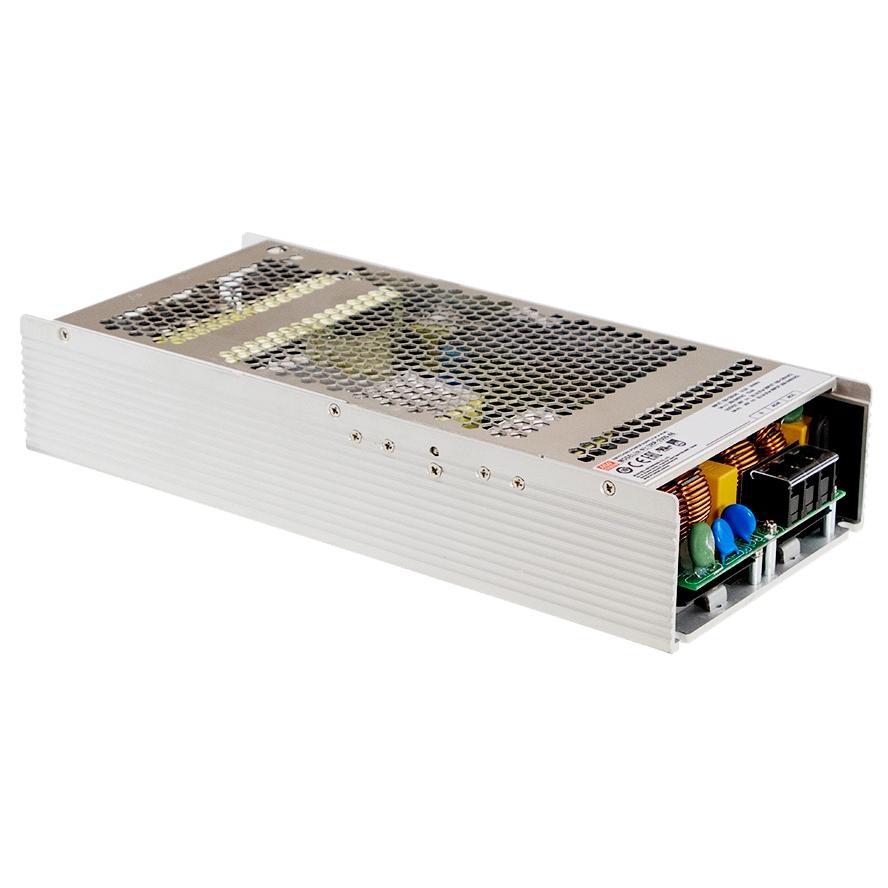

The MEAN WELL UHP-2500-36 is a high-power 2500W ultra-slim power supply engineered for industrial and automation systems requiring a reliable 36V DC output. With advanced digital control, high efficiency up to 96%, and a robust fanless design, it ensures long-term stability and silent operation in demanding environments. Supporting programmable features and multiple communication protocols, it provides maximum flexibility for diverse applications.

Key Features

• Output Power: 2500W

• Output Voltage: 36V DC

• Ultra-Slim & Fanless Design: Efficient conduction and convection cooling in a rugged metal enclosure

• High Efficiency: Up to 96%

• Wide Input Range: 180 ~ 264VAC / 254 ~ 373VDC

• Reliable Protections: Short circuit, overload, overvoltage, overtemperature

• Smart Control: Programmable output voltage/current (PV/PC)

• Temperature Resilience: Operates from -30°C to +70°C with derating

• Global Certifications: UL / CE / EAC and more

Available Variants (Communication Protocol):

• Blank – With programming PV/PC (in stock)

• PM – PMBus protocol with PV/PC (by request)

• CAN – CANBus protocol with PV/PC (by request)

• KN – KNX protocol with PV/PC (by request)

Typical Applications

• Industrial automation and factory equipment

• High-power DC systems

• Telecom and datacom infrastructure

• Test and measurement equipment

• LED testing, burn-in, and integration systems

Datasheet:
