UHP-2500-48

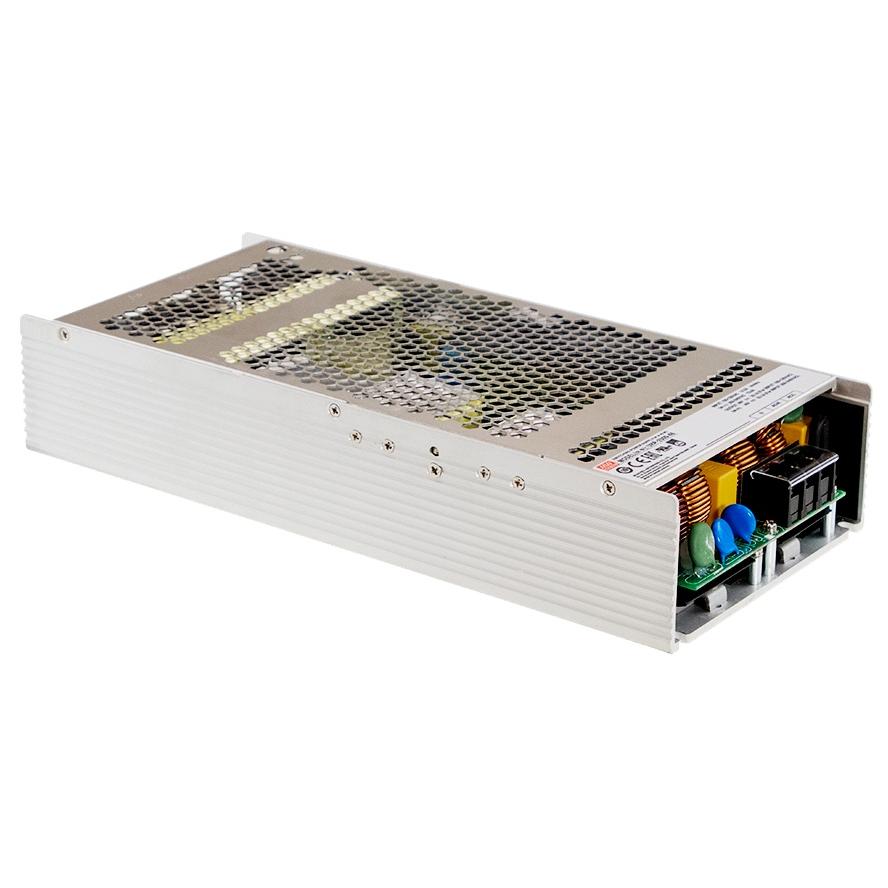

The MEAN WELL UHP-2500-48 is a high-performance 2500W ultra-slim power supply designed for industrial, automation, and communication systems requiring a stable 48V DC output. With cutting-edge digital control, fanless cooling, and efficiency up to 96%, it ensures reliable, quiet, and long-lasting operation even in harsh environments. Offering programmable features and optional communication protocols, it provides maximum adaptability for diverse applications.

Key Features

• Output Power: 2500W

• Output Voltage: 48V DC

• Ultra-Slim & Fanless Design: Advanced conduction and convection cooling in a rugged metal housing

• High Efficiency: Up to 96%

• Wide Input Range: 180 ~ 264VAC / 254 ~ 373VDC

• Reliable Protections: Short circuit, overload, overvoltage, overtemperature

• Smart Control: Programmable output voltage/current (PV/PC)

• Temperature Resilience: Operates from -30°C to +70°C with derating

• Global Certifications: UL / CE / EAC and more

Available Variants (Communication Protocol):

• Blank – With programming PV/PC (in stock)

• PM – PMBus protocol with PV/PC (by request)

• CAN – CANBus protocol with PV/PC (by request)

• KN – KNX protocol with PV/PC (by request)

Typical Applications

• Industrial automation and control systems

• High-voltage DC equipment

• Telecom and datacom infrastructure

• Test and measurement platforms

• LED testing, burn-in, and integration systems

Datasheet:
