UHP-750-24

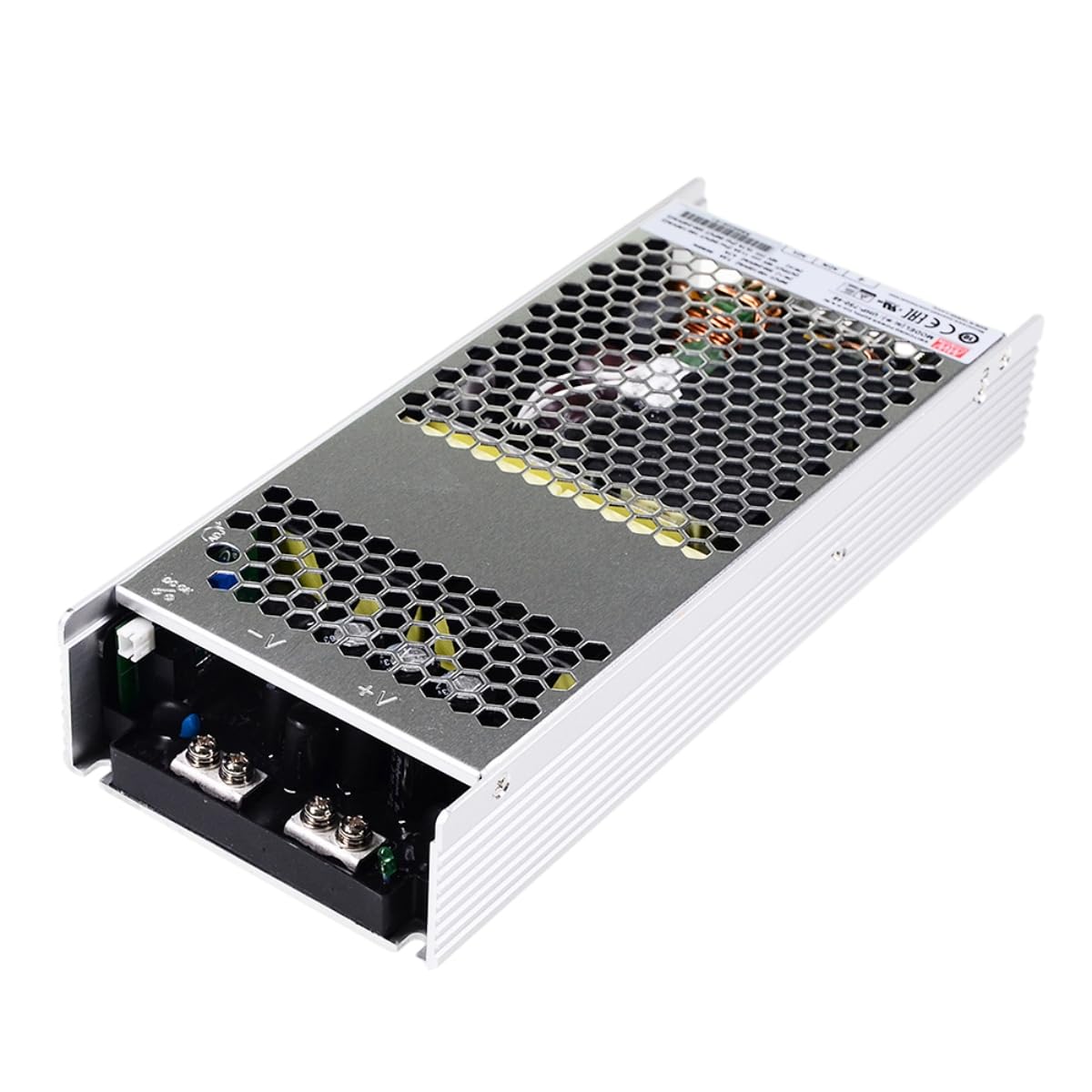

The Mean Well UHP-750-24 is a 750W ultra-slim single-output enclosed power supply, providing a stable 24V DC output at 31.3A. With up to 95% efficiency, fanless convection cooling, and advanced control features, it ensures high performance and reliability in industrial, LED, and communication applications.

✅ Key Features:

• Universal AC input: 90–264VAC / 127–370VDC

• Output: 24V DC ⎓ 31.3A, 750W rated

• Ultra-slim low-profile design: only 26mm height

• High efficiency up to 95%

• Cooling by free air convection (fanless)

• Built-in protections: Short circuit / Overload / Overvoltage / Overtemperature

• Additional functions: Remote ON/OFF, voltage programming, current adjustment

• LED power indicator

• Rugged enclosed design for industrial environments

• Safety approvals: UL / CE / EAC certified

• Warranty: 3 years

📌 Typical Applications:

• Industrial automation and process control

• LED lighting and display systems

• Telecommunication equipment

• Laboratory and test equipment

• General-purpose 24V DC power systems

Datasheet:
