UHP-750-48

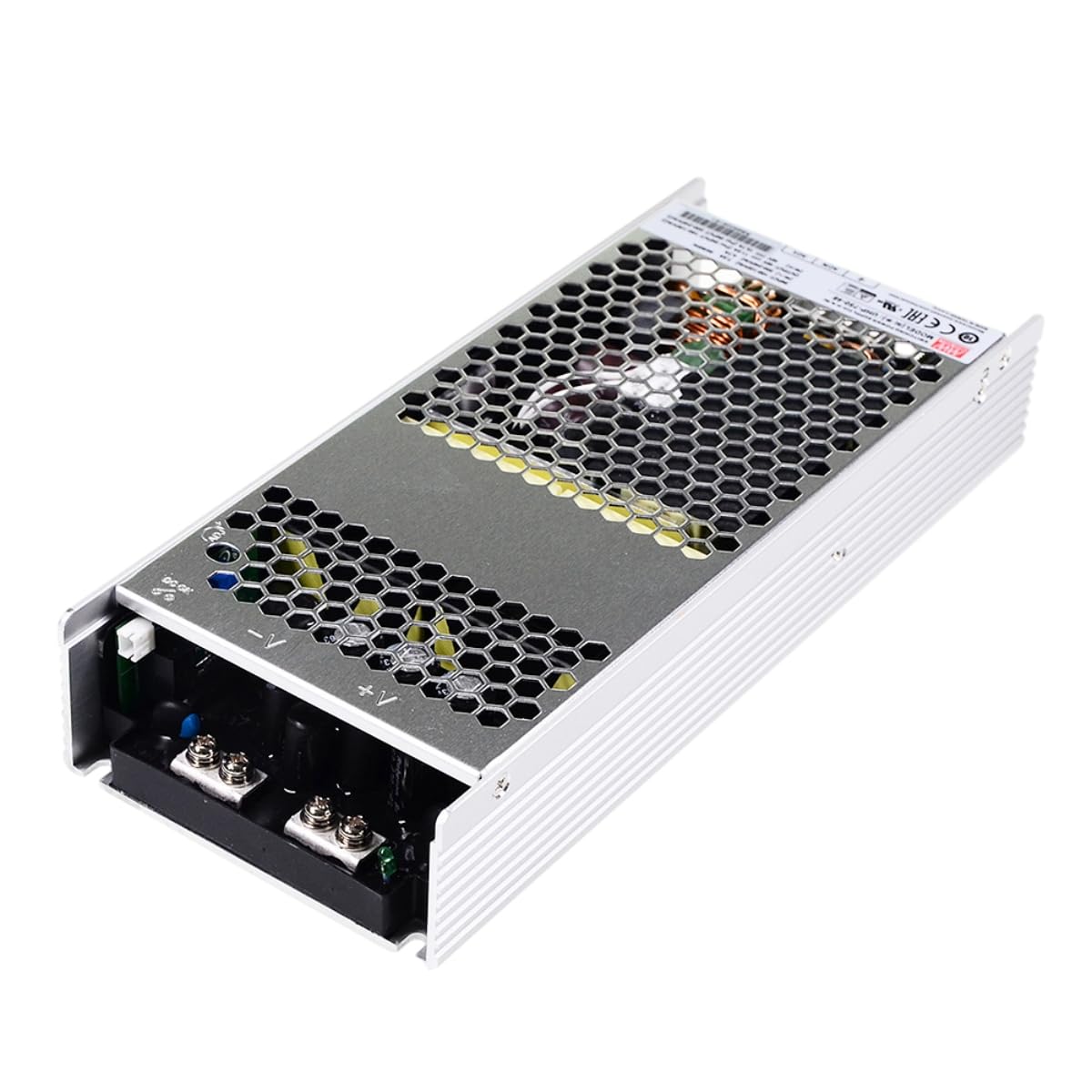

The Mean Well UHP-750-48 is a 750W ultra-slim single-output enclosed power supply, delivering a reliable 48V DC output at 15.7A. With high efficiency up to 95%, fanless convection cooling, and advanced control functions, it ensures stable performance in demanding industrial, LED, and communication applications.

✅ Key Features:

• Universal AC input: 90–264VAC / 127–370VDC

• Output: 48V DC ⎓ 15.7A, 750W rated

• Ultra-slim low-profile design: only 26mm height

• High efficiency up to 95%

• Cooling by free air convection (fanless)

• Built-in protections: Short circuit / Overload / Overvoltage / Overtemperature

• Additional functions: Remote ON/OFF, voltage programming, current adjustment

• LED power indicator

• Rugged enclosed design for industrial use

• Safety approvals: UL / CE / EAC certified

• Warranty: 3 years

📌 Typical Applications:

• Industrial automation and process control

• LED lighting and signage systems

• Communication and networking equipment

• Laboratory power supplies and test equipment

• General-purpose 48V DC applications

Datasheet:
