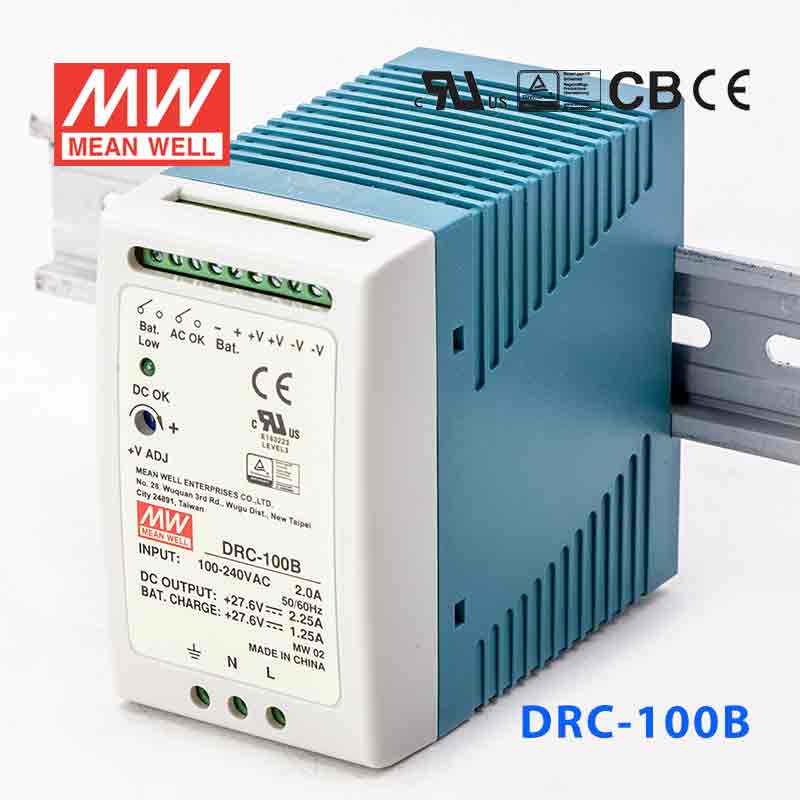

DRC-100B

DRC-100B

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage
Battery low protection/ Battery reverse polarity protection by fuse
Can be installed on DIN rail TS-35/7.5 or 15
Alarm signal for AC OK and Battery low(via relay)
Cooling by free air convection

LED indicator for power on

100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 30A at 115VAC, 60A at 230VAC
DC adjustment range Ā±8.6% rated output voltage
Overload protection 105%~150% constant current limiting, auto-recovery
Over-voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 2400ms, 50ms, 50ms
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -30~+70Ā°CĀ
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 3 poles, O/P: 8 poles screw DIN terminal
Dimension (LxWxH) 55x90x100
Packing 30pcs / 12.1kg
