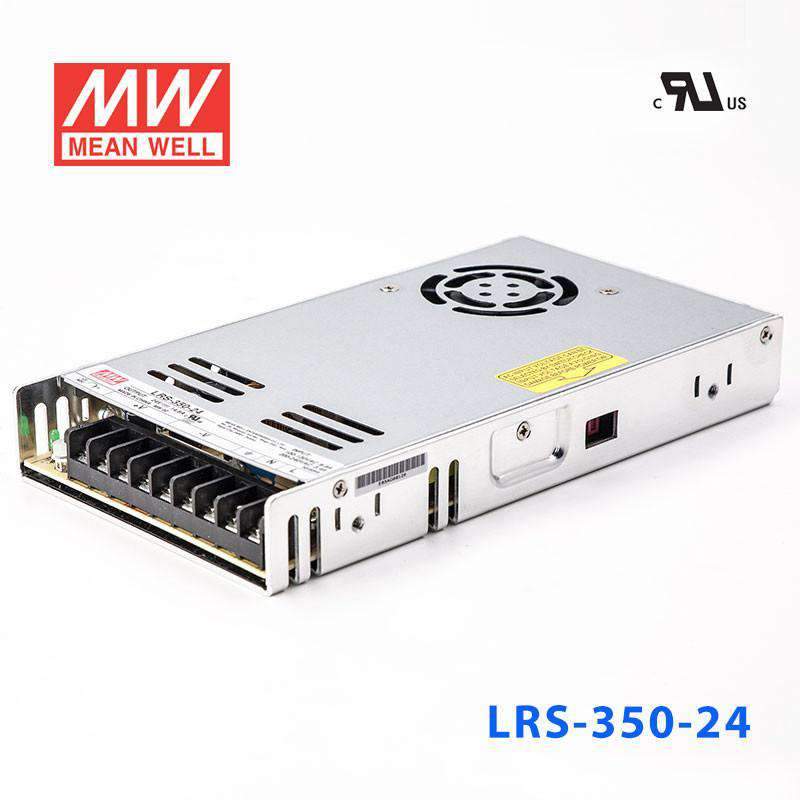

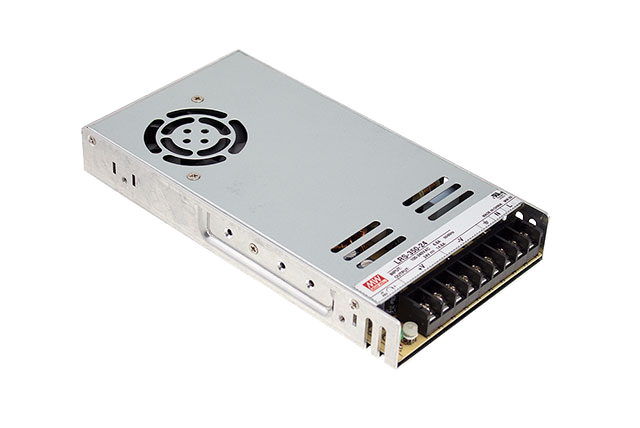

LRS-350-24

Name: LRS-350-24
Brand: MEAN WELL
SKU: 70539
Price: 25.68 USD
Availability: InStock

$25.68

Availability: ✔ 40 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$24.40

20+

$23.88

50+

$23.37

100+

$22.86

200+

$22.34

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

14.6A

Power Rating

350.4W

Waterproof

Non-waterproof

Dimensions

8.46 x 4.52 x 1.18 in

Weight

1.67 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features:

No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty

General Specification

AC input voltage range	115 / 230VAC by switch
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	110%~140%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-25~+70°C (refer to output derating curve)
Safety standards	UL60950-1 approved
EMC standards	Design refer to EN55022 class A
Connection	9P/9.5mm pitch terminal block
Dimension (LxWxH)	215x 115x 30
