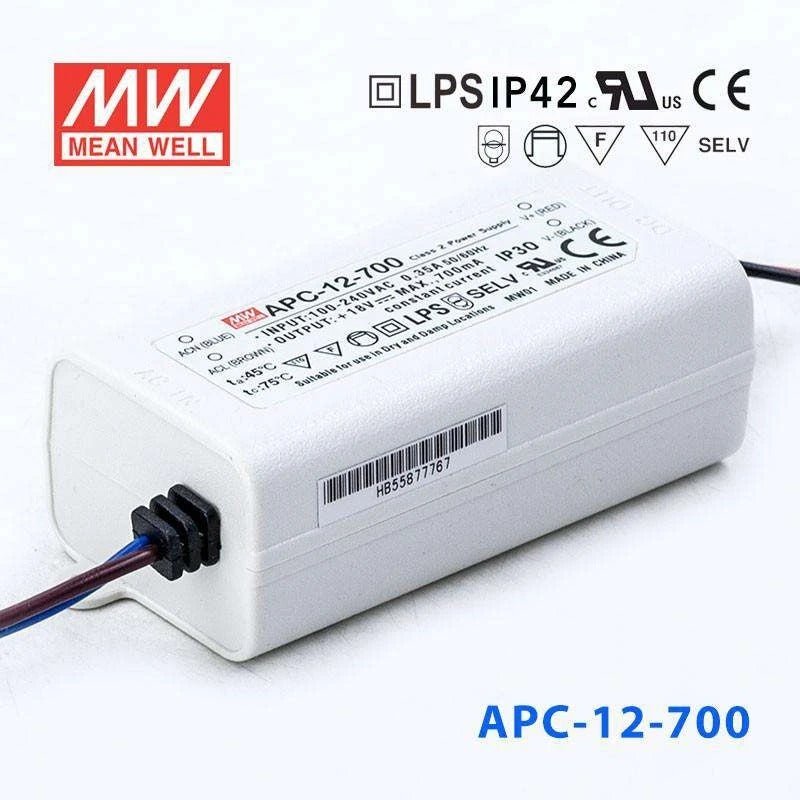

APC-12-700

APC-12-700

Sold out
$6.49 - $6.49
$6.49
$6.49 - $6.49
$6.49
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$6.17
20+
$6.04
50+
$5.91
100+
$5.78
200+
$5.65
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
Fully isolated plastic case
Protections: Short circuit / Over voltage
Constant current design (C.C. mode)
IP30 design
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
2 years warranty

General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current Cold start, 70A at 230VAC
Overload Range >105% rated output current
Protection Type Hiccup up mode, auto-recovery
Over voltage protection 110%~145% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70OC (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13
EMC standards EN55015, EN61000-3-2 class A ,EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, 18AWGx2C (15cm)
Connection Output UL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm) 77x 40x 29
