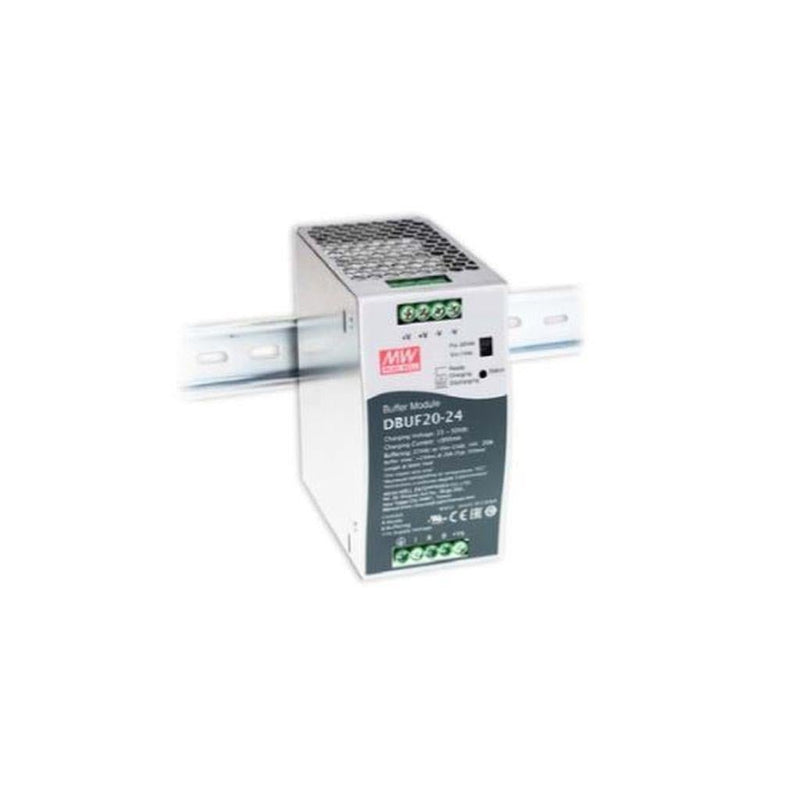

DBUF20-24

• Buffer storage with electrolytic capacitors instead of lead-acid batteries
• Buffer storage time type of 350ms @ 22Vdc / 20A
• Selectable buffer mode via switch:
  Fixed mode at 22Vdc
  Dynamic mode for Vin-1Vdc
• LED indicator for signal status
• Supports parallel connection to extend buffer storage time
• Cooling by free air convection
• Wide operating temperature range: -25 ~ +75°C

Applications

• Industrial control system
• Semiconductor manufacturing equipment
• Industrial automation
• Electromechanical devices

Description

The DBUF20-24 buffer module is a complementary device for regulated 24V DC power supplies. The buffer module uses maintenance-free electrolytic capacitors to store energy, eliminating the need for periodic replacement compared to more expensive batteries that also have a shorter lifespan. The DBUF20-24 comes with comprehensive built-in protection features such as overvoltage, overcurrent, and short-circuit protection. Buffer modules can be connected in parallel to increase output capacity or standby time.
