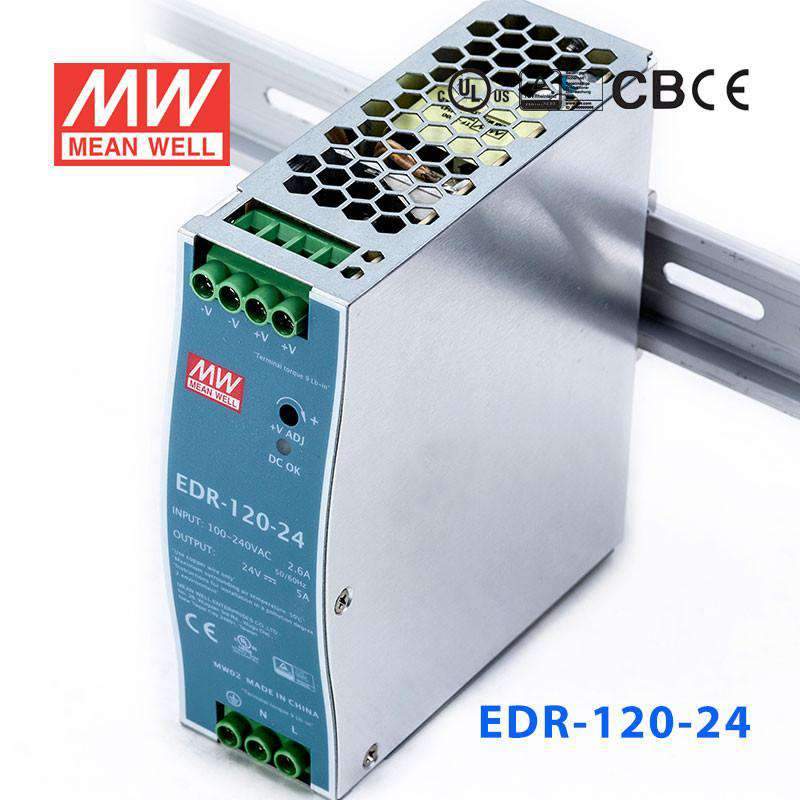

EDR-120-24

• Output: 24V, 5A, 120W
• Adjustable voltage range: 24 ~ 28V
• Universal AC input / full range
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Cooling by free air convection.
• Can be installed on TS-35 / 7.5 or 15 DIN rail
• UL 508 (industrial control equipment) approved
• Industrial immunity level EN61000-6-2 (EN50082-2)
• 100% burn-in test at full load

Applications

• Industrial control system
• Semiconductor manufacturing equipment
• Factory automation
• Electromechanical devices

Description

EDR-120 is an economical and slim series of 120W DIN rail power supplies, designed to be installed on TS-35 / 7.5 or TS-35/15 mounting rails. The body is designed with a width of 40 mm, allowing space-saving inside cabinets. The entire series adopts a full-range AC input from 90VAC to 264VAC and complies with EN61000-3-2, the European Union standard for regulating harmonic current. EDR-120 is designed with a metal housing that enhances energy dissipation. With a working efficiency of up to 88.5%, the entire series can operate in ambient temperatures between -20°C and 60°C under air convection. It is equipped with a constant current mode for overload protection, making it suitable for various inductive or capacitive applications. Complete protection functions and relevant certifications for industrial control devices (UL508, TUV EN62368-1, etc.) make EDR-120 a very competitive power supply solution for industrial applications.
