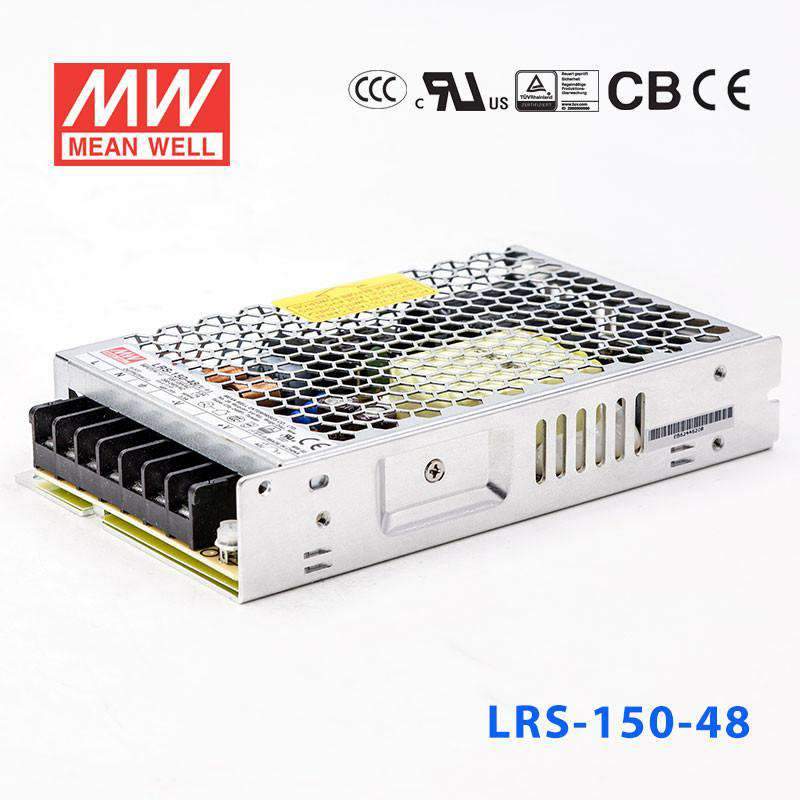

LRS-150-48

Overview

The LRS-150-48 is a 150W enclosed switching power supply that provides a regulated 48V DC output at 3.3A. With its low-profile case, high efficiency, and fanless cooling design, it is a robust choice for industrial automation, LED systems, communication equipment, and other applications requiring a stable 48V DC source.

The LRS-150F-48 is the same power supply model but includes a factory-installed terminal cover, offering extra safety by preventing accidental contact with the output connections.

Key Features

• Output Power: 158.4W

• Output Voltage/Current: +48V DC ⎓ 3.3A

• Universal AC input: 85 ~ 264VAC / 120 ~ 373VDC

• High efficiency up to 90%

• Protections: Short circuit / Overload / Overvoltage / Overtemperature

• Cooling: Fanless, free air convection

• LED indicator for power on

• Compact size: 159 × 97 × 30 mm

• MTBF: Over 700,000 hours

• Warranty: 2 years

• LRS-150F-48 specific: Includes terminal cover for enhanced safety

Typical Applications

• Industrial machinery and automation

• LED lighting and display systems

• Security and communication equipment

• Measurement and testing devices

• General 48V DC electronic systems
