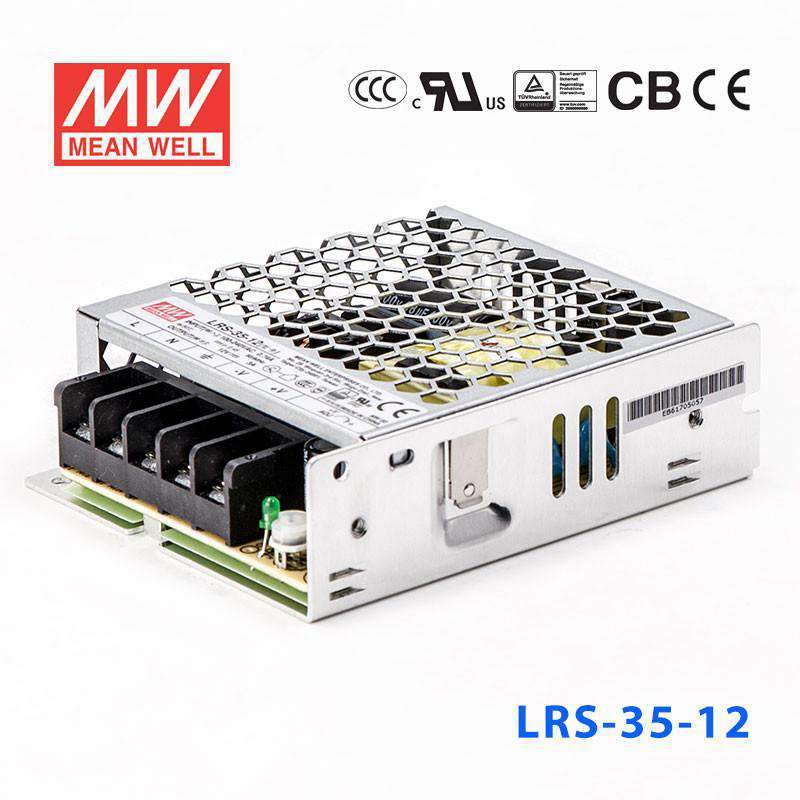

LRS-35-12

• Universal AC input / Full range
• Output: 12V, 3A, 36W
• Withstands 300VAC surge input for 5 seconds
• No-load power consumption <0.2W
• Miniature size and low-profile 1U design
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Cooling by free air convection
• Compliance with IEC / EN 60335-1 (PD3) and IEC / EN61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters (Note 8)
• Withstands 5G vibration test
• High efficiency, long lifespan, and high reliability
• LED power indicator
• Overvoltage category III
• 100% full-load burn-in test

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Instruments, equipment, or electronic devices
• Household appliances

Description

The LRS-35 series is a 35W single-output enclosed-type power supply with a low-profile 30mm design. Adopting a full-range input of 85 ~ 264VAC, the entire series provides an output voltage range of 5V, 12V, 15V, 24V, 36V, and 48V.
In addition to its high efficiency of up to 89%, the metal mesh housing design enhances heat dissipation, allowing the LRS-35 series to operate from -30°C to 70°C under air convection without a fan. With an extremely low no-load power consumption (less than 0.2W), it enables the end system to easily meet global energy requirements. The LRS-100 features comprehensive protection functions and 5G vibration resistance; it complies with international safety standards such as TUV EN2368-1, EN60335-1, EN61558-1 / -2-16, UL62368-1, and GB4943. The LRS-35 series serves as a high-value power supply solution for various industrial applications.
