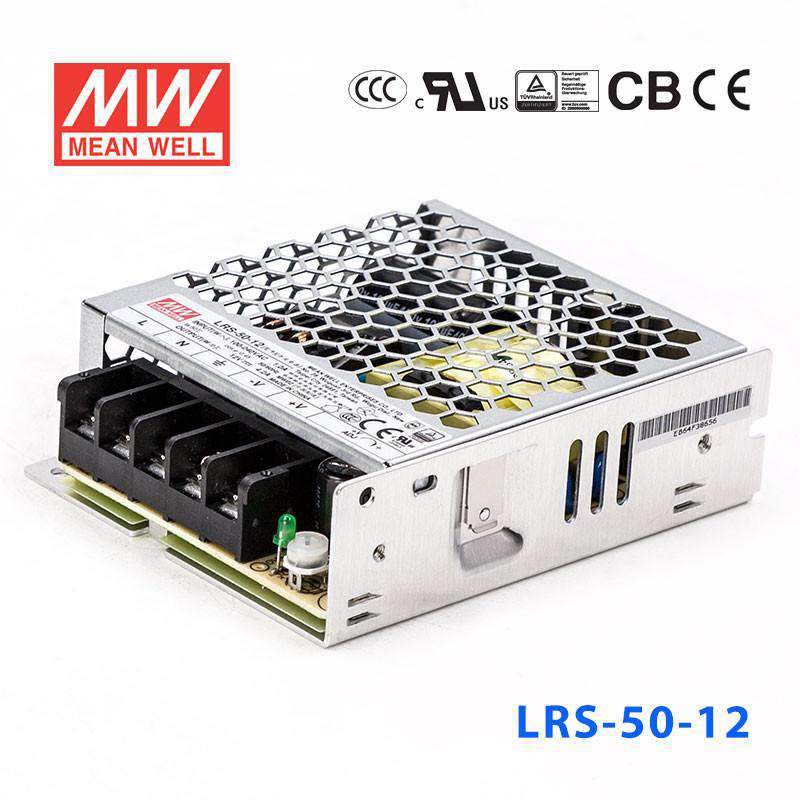

LRS-50-12

LRS-50-12

$13.29 - $13.29
$13.29
$13.29 - $13.29
$13.29
Availability:
353 in stock, ready to be shipped
Place your order within --:--:-- to ensure shipment Today
Quantity Prices
Quantity
Unit Price
10+
$12.63
20+
$12.36
50+
$12.09
100+
$11.83
200+
$11.56
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features:

No load power consumption <0.2W for 35W/50W;  <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty


General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range ±10% by potentiometer
Overload protection Range 110%~150%
Overload protection Type Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~135% rated output voltage
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection 5P/9.5mm pitch terminal block
Dimension (LxWxH) 99x 82x 30

LRS-50 series
