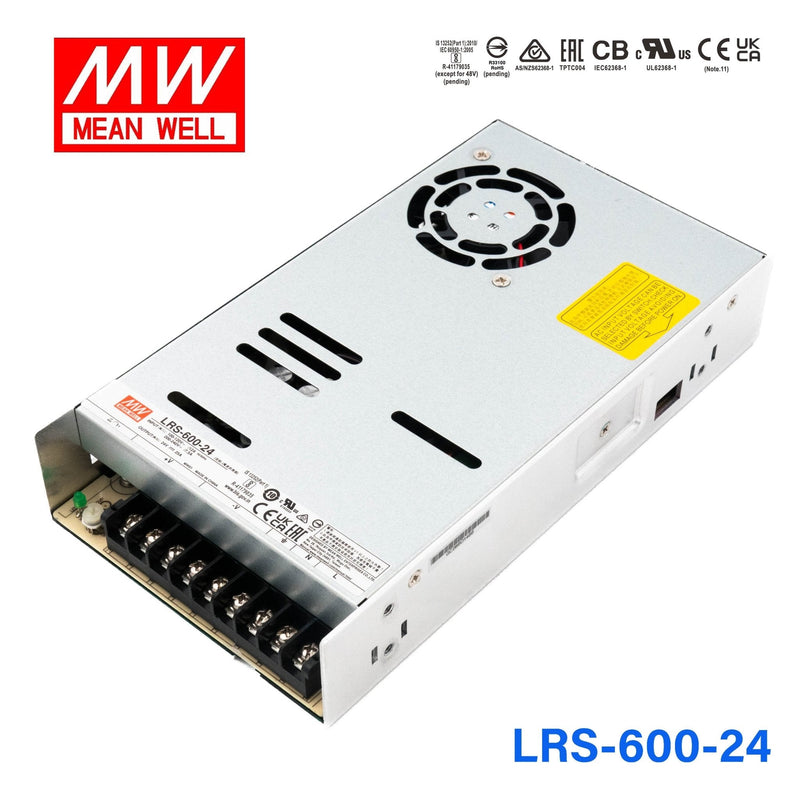

LRS-600-24

• Selectable AC input range via switch
• Output: 24V, 25A, 600W
• Supports 300 VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Forced air cooling by built-in DC fan
• Built-in fan cooling on/off control
• 1U low profile
• Withstands 5G vibration test
• Power-on LED indicator
• No-load power consumption <0.75 W
• 100% full load burn-in test
• High operating temperature up to 70°C
• Operable at altitudes up to 5000 meters (Note 8)
• High efficiency, long life, and high reliability

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Instruments, devices, or electronic apparatus

Description

The LRS-600 series is a 600W enclosed-type single-output power supply with a low-profile 30mm design. Adopting a 115VAC or 230VAC input (switch selectable), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V.

In addition to its high efficiency of up to 89%, with the built-in long-life fan, the LRS-350 can operate under -25°C ~ +70°C at full load. With an extremely low no-load power consumption (less than 0.75 W), it enables the end system to easily meet global energy requirements. The LRS-350 features complete protection functions and 5G anti-vibration capability; it complies with international safety standards such as IEC / UL 62368-1. The LRS-350 series serves as a high-cost-performance power supply solution for various industrial applications.
