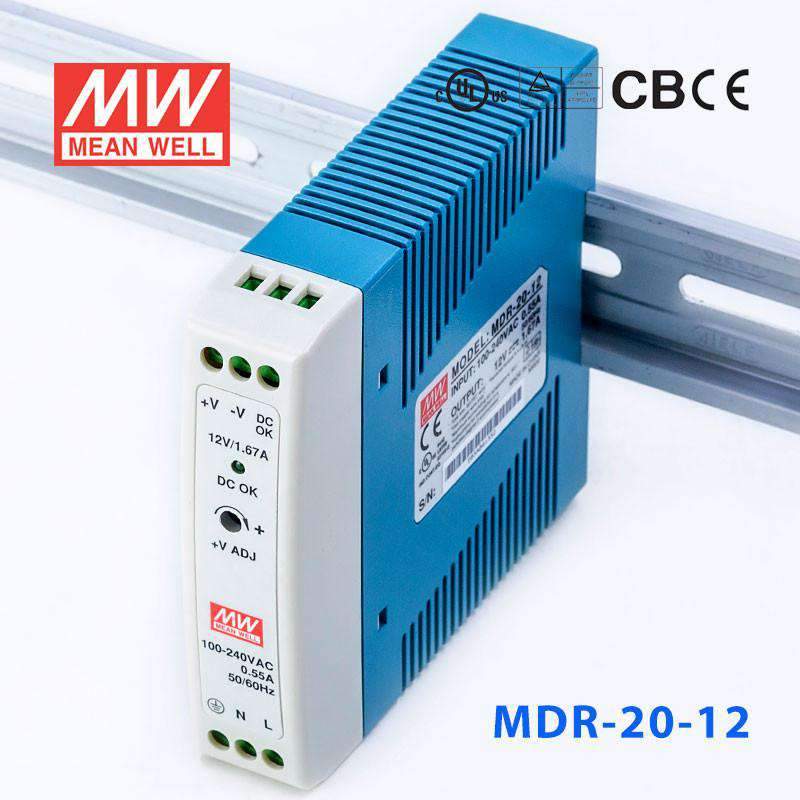

MDR-20-12

MDR-20-12

Sold out
$16.05 - $16.05
$16.05
$16.05 - $16.05
$16.05
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$15.25
20+
$14.93
50+
$14.61
100+
$14.28
200+
$13.96
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.75W
LED indicator for power on
DC OK signal output
Cooling by free air convection
100% full load burn-in test
3 years warranty


General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start, 20A at 115VAC, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~160% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 50ms
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature -20~+70°C (refer to output derating curve)
DC OK signal Open collector
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection I/P: 3 poles, O/P: 3 poles screw DIN terminal
Dimension (LxWxH) 22.5x90x100
Packing 72pcs / 14.7kg
