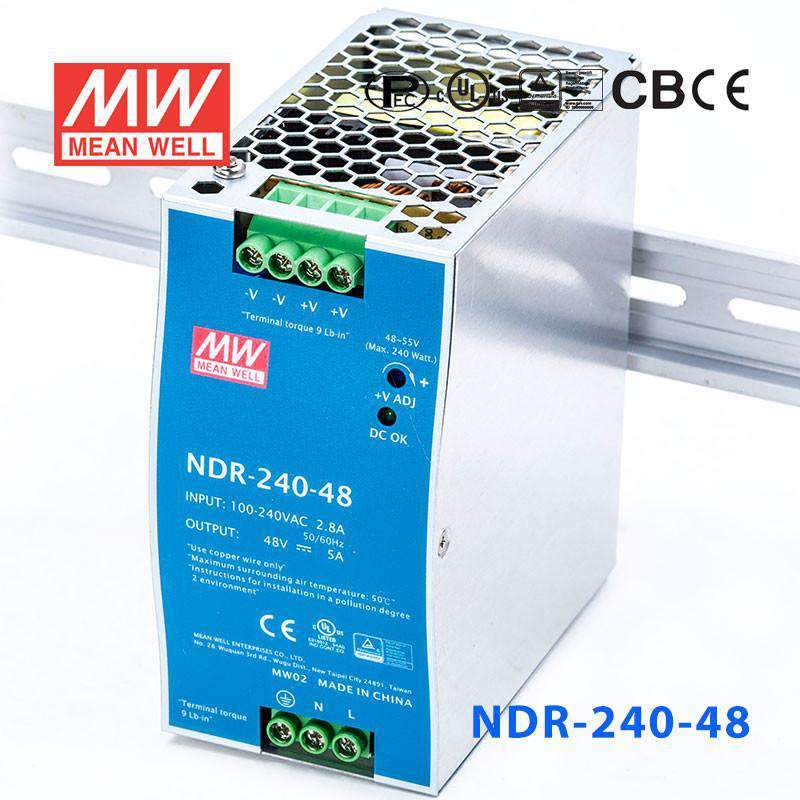

NDR-240-48

• Universal AC input / Full range
• Output: 48V, 5A, 240W
• Built-in active PFC function
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Natural air convection cooling
• Can be installed on DIN rail TS-35 / 7.5 or 15
• UL 508 (industrial control equipment) approved
• Industrial immunity level EN61000-6-2 (EN50082-2)
• 100% full load burn-in test

Applications

• Industrial control system
• Semiconductor manufacturing equipment
• Factory automation
• Electromechanical equipment

Description

The NDR-240 is an economical and slim 240W DIN rail power supply series, designed for installation on TS-35 / 7.5 or TS-35/15 mounting rails. Its 63mm wide body saves space within cabinets. The entire series adopts a full-range AC input from 90VAC to 264VAC and complies with EN61000-3-2, the European Union standard for harmonic current. The NDR-240 features a metal housing that enhances heat dissipation. With up to 90% efficiency, the entire series operates at ambient temperatures ranging from -20°C to 70°C under air convection. It is equipped with a constant current mode for overload protection, making it suitable for various inductive or capacitive applications. Comprehensive protection functions and certifications for industrial control equipment (UL508, TUV EN62368-1, etc.) make the NDR-240 a highly competitive power supply solution for industrial applications.
