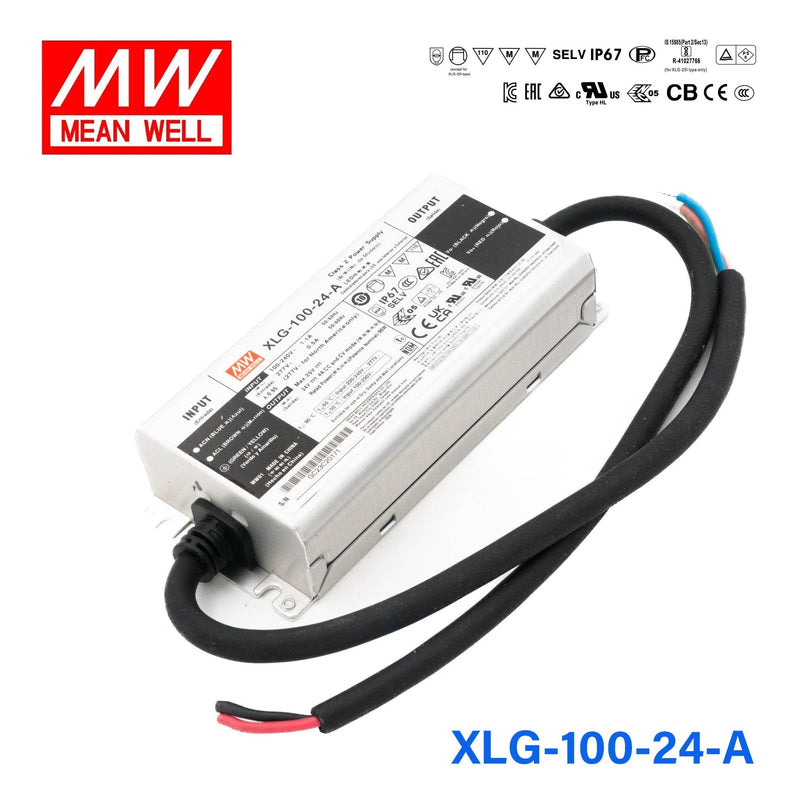

XLG-100-24-A

• A= adjustable via built-in potentiometer
• Output: 24V, 4A, 96W
• Adjustable Current Range: 2~4A
• Wide input range 100 ~ 305VAC (Class I)
• Total power output at 70 ~ 100% Constant Power Mode operation
• Metal case with IP67, suitable for outdoor applications.
• LVLE power unit (H-type) Class 2 (24V)
• Surge protection with 6KV / 4KV (10KV / 6KV optional)
• 3-in-1 dimming function (dimming to off and isolation design)
• India version (EESL) with input surge protection can withstand input voltage levels of 440Vac for 48 hours
• Protection functions: OVP / SCP / OCP / OTP
• Lifespan > 50,000 hours

Applications

• Skyscraper lighting
• Street lighting
• Floodlighting
• Stage lighting
• Fishing lighting
• Horticulture lighting
• Bay lighting
• DMX power supply
• HL type for use in Class I, Division 2

Description

The XLG-100 series is a 100W AC/DC LED driver with Constant Power Mode operation. XLG-100 operates from 100 ~ 305VAC and offers models with different rated currents ranging from 700mA to 8000mA. Thanks to its high efficiency of up to 92%, with a fanless design, the entire series can operate at case temperatures of -40°C ~ +90°C under free air convection. The metal housing design and IP67 ingress protection level allow this series to be suitable for both indoor and outdoor applications. Furthermore, its innovative environmental adaptability enables this series to reliably power LEDs in almost any application environment worldwide where LED luminaires can be installed. The XLG-100 series complies with the latest version of international safety standards IEC61347 / GB7000.1-2015 and UL8750. The output and dimming circuit are also fully compliant with new isolation regulations to ensure the safety of both the user and the luminaire system during installation.
