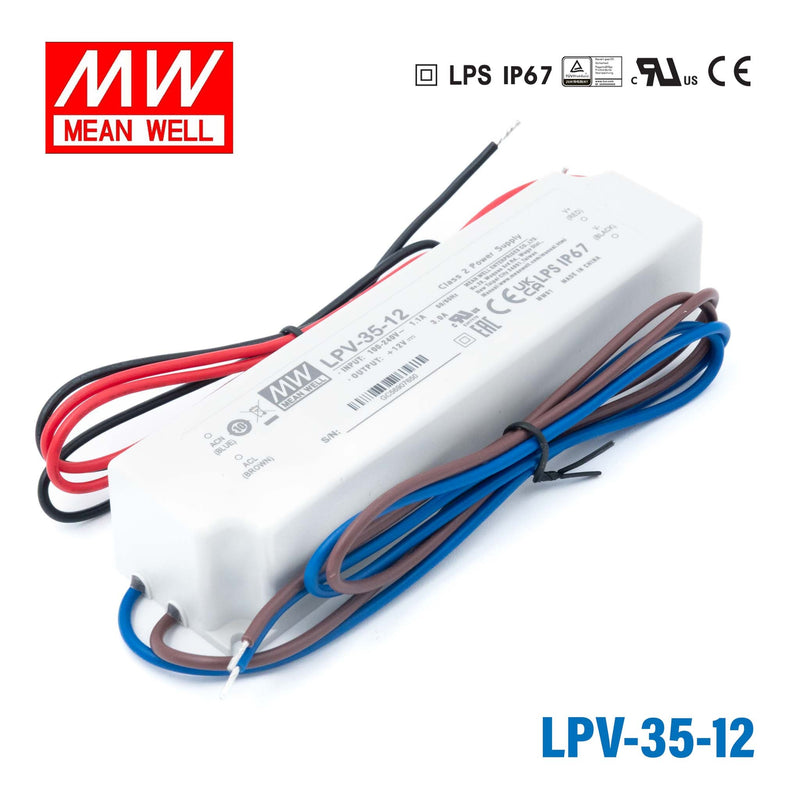

LPV-35-12

LPV-35-12

$12.67 - $12.67
$12.67
$12.67 - $12.67
$12.67
Availability:
40 in stock, ready to be shipped
Place your order within --:--:-- to ensure shipment Today
Quantity Prices
Quantity
Unit Price
10+
$12.04
20+
$11.78
50+
$11.53
100+
$11.28
200+
$11.02
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

90~264VAC input
Fully encapsulated with IP67 level
Short circuit / Overload / Over voltage
Constant voltage design (C.V. mode)
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~264VAC
AC inrush current Cold start,55A at 230VAC
Overload Range 110%~150%
Protection Type Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards LPV-20: TUV EN60950-1, UL879, UL1310 approved, LPV-35: IEC 61347-1, IEC 61347-2-13, UL1310 approved
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (60cm)
Connection Output UL rated, 16AWGx2C (60cm)
Dimension (LxWxH)(mm) 148x 40x 30

LPV-35 series
