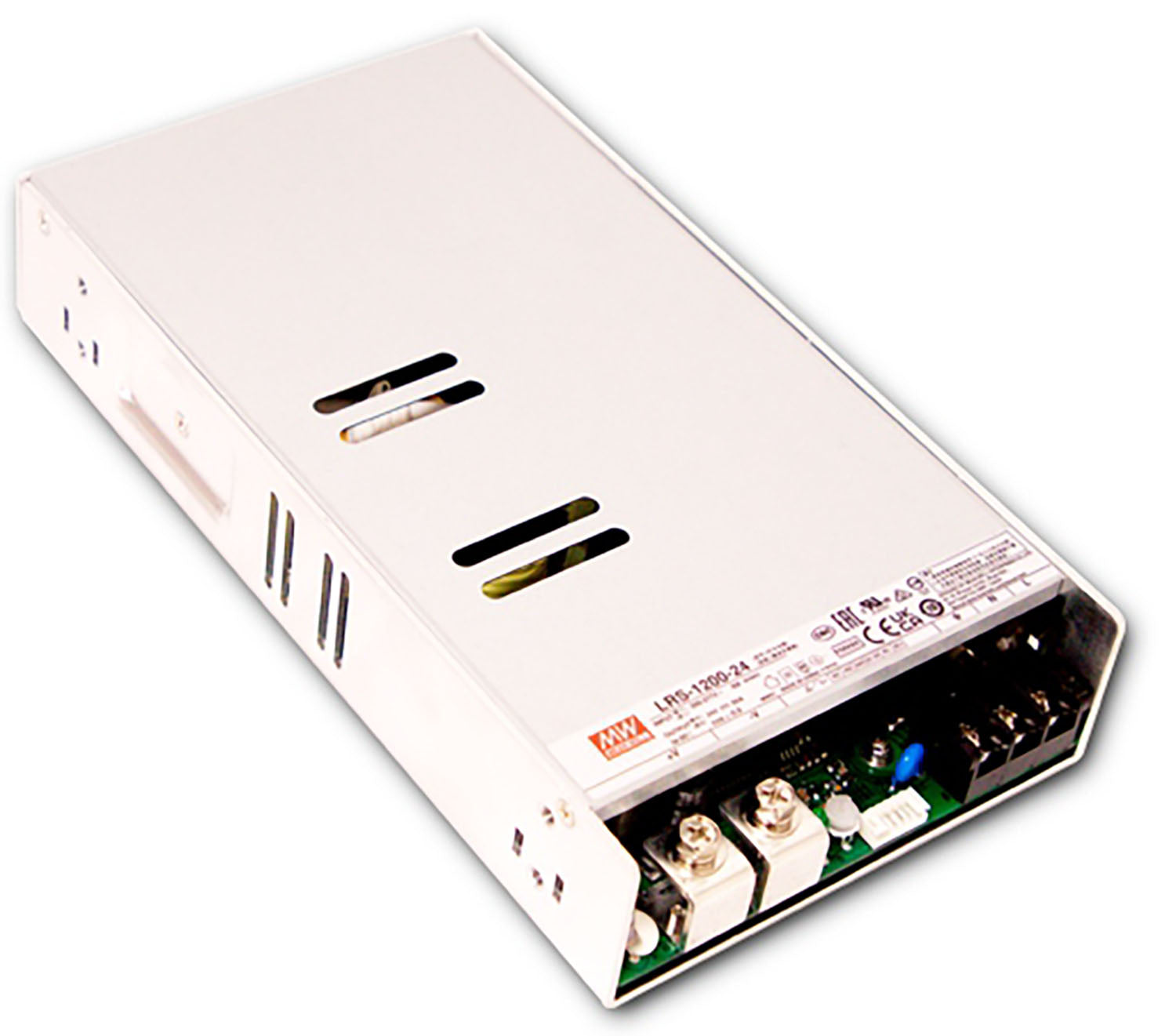

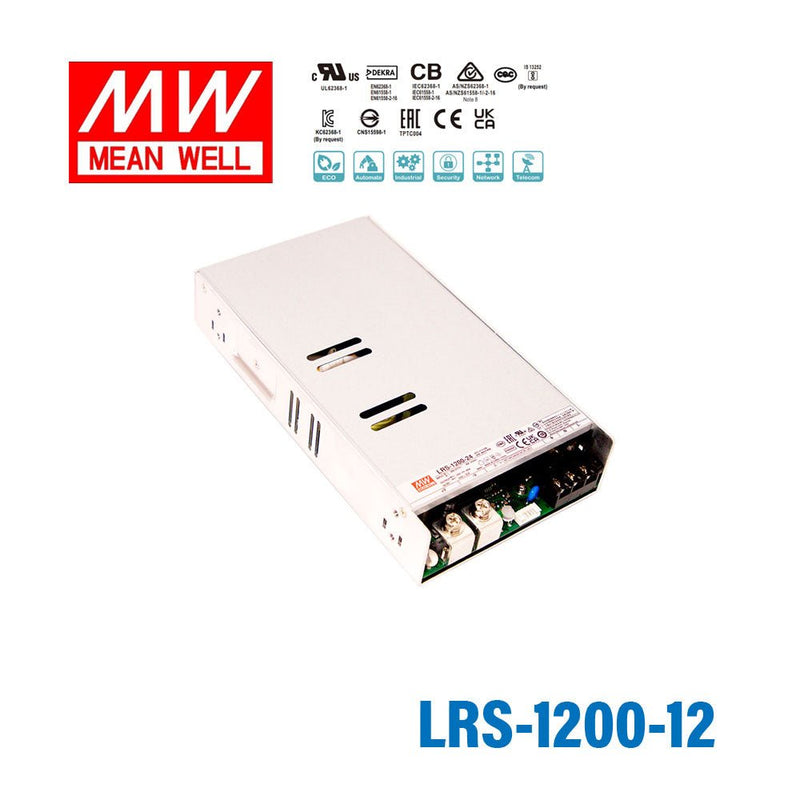

LRS-1200-12

Features:

• AC input 180~305Vac input
• Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16)
• Compact size with low profile (17W/inch³)
• 150% peak power @5s
• High efficiency up to 94%
• Built-in constant current limiting circuit
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Forced air cooling, cooling fan speed control
• Built-in DC OK/Remote Control/Remote Sense
• -30~+70℃ wide range operation temperature
• Over voltage category (OVC III)
• Operating altitude up to 5000 meters
• Conformal coating
• 3 years warranty

General Specification

AC input voltage range

180 ~ 305Vac 255 ~ 431Vdc

AC inrush current (max.)

60A/230Vac 75A/277Vac

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Constant current limiting for output power >150% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover

Over-voltage protection

(16 - 20V ) (29 - 36V) (41 - 50V) (57 - 67V)

Protection type : Shut down o/p voltage, re-power on to recover

Over Temperature

Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:4.2KVac I/P-FG:2.1KVac O/P-FG:1.25KVac

Working temperature

-30 - +70℃ (Refer to "Derating Curve")

Safety standards

CB IEC62368-1,IEC61558-1/-2-16

UL UL62368-1

DEKRA BS EN/EN62368-1,BS EN/EN61558-1/-2-16

RCM AS/NZS 62368-1,AS/NZS 61558-1/-2-16

CQC GB 4943.1

BSMI CNS15598-1

EAC TPTC 004 approved

Dimension (LxWxH)

225x124x41mm
