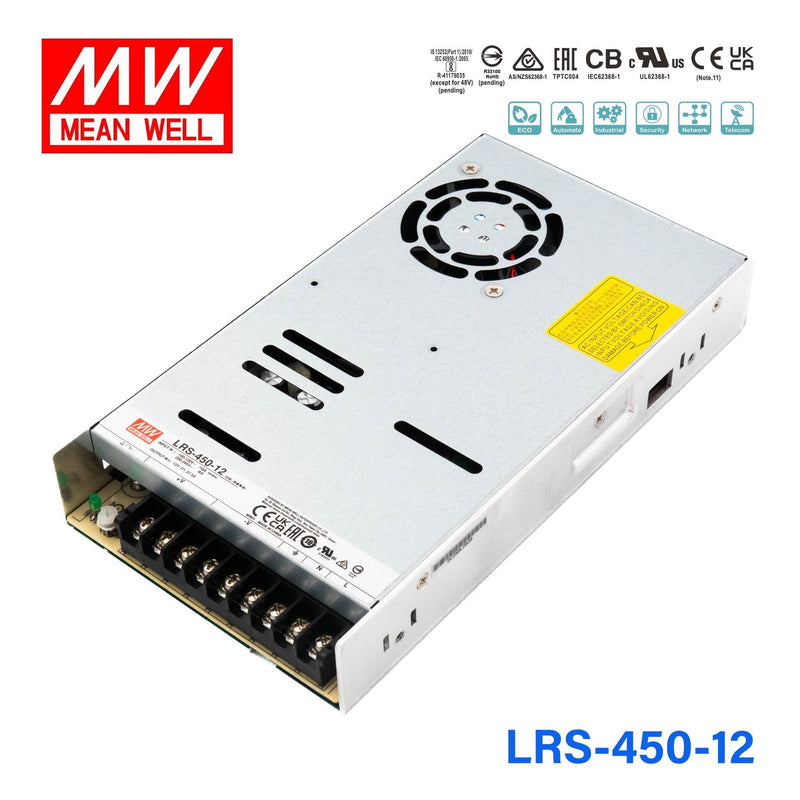

LRS-450-12

LRS-450-12

$55.48 - $55.48
$55.48
$55.48 - $55.48
$55.48
Availability:
210 in stock, ready to be shipped
Output Voltage: 12V
Rated Current: 37.5A
Power Rating: 450W
Quantity Prices
Quantity
Unit Price
10+
$52.71
20+
$51.60
50+
$50.49
100+
$49.38
200+
$48.27
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Place your order within --:--:-- to ensure shipment Today
Quantity

Features:

Brand MEANWELL

AC input voltage range: 90 ~ 132VAC

Rated power: 450W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in cooling Fan ON-OFF control

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

High efficiency, long life and high reliability

3 years warranty


General Specification

AC input voltage range 180 / 264VAC by switch
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% by potentiometer
Overload protection Range 105%~150%
Overload protection Type Constant current limiting, unit will shutdown after 3 sec, re-power on to recover
Over voltage protection Range 5.75 ~ 6.75V, 13.8 ~ 16.2V, 18 ~ 21V, 27.6 ~ 32.4V, 41.4 ~ 48.6V, 55.2 ~ 64.8V
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -20 ~ +70℃ (Refer to "Derating Curve")
Safety standards BS IEC/UL 62368-1, EAC TP TC 004,AS/NZS62368.1 approved
Dimension (LxWxH) 225*124*35mm (L*W*H)
